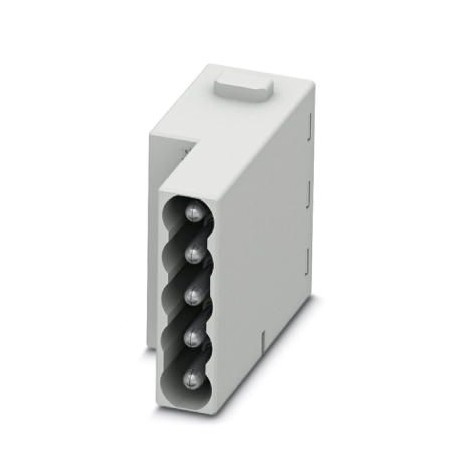

PHOENIX CONTACT HC-M-05L-TPT-M HC-M-05L-TPT-M 1423961 PHOENIX CONTACT Contact insert module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-M-05L-TPT-M 1423961 PHOENIX CONTACT Contact insert module

HC-M-05L-TPT-M

1423961

PHOENIX CONTACT

1 Pcs.

Contact insert module Contact insert module, number of poles: 5, power contacts: 5, control contacts: 0, number of connections per pole: 2, Male, Push-in connection, 230 V/400 V, 16 A, 0.25 mm² ... 1.5 mm², Application: Power

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1423961
Packing unit1 pc
Catalog pagePage 567 (C-2-2017)
GTIN4055626365800
Weight per Piece (excluding packing)18.000 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Height36 mm
Width34 mm
Length14.6 mm

Electrical characteristics

Rated voltage (III/3)230 V (Conductor-PE)
400 V (Conductor-Conductor)
Rated current10 A
Rated surge voltage4 kV
Connection profile5

Ambient conditions

Ambient temperature (operation)-40 °C ... 125 °C

Mechanical characteristics

Conductor cross section0.25 mm² ... 1.5 mm² (with ferrule)
Connection cross section AWG24 ... 16 (with ferrule)
Stripping length of the individual wire8 mm ±1 mm
Contact diameter2.5 mm
Insertion/withdrawal cycles≥ 500

General

NoteFor HEAVYCON housing type B6 to B48, HC-M-B...MF-... hinged module carrier frame required.
For solid conductors or stranded conductors with ferrules
SeriesHC-M-05-T
Colorlight gray
Number of module slots1
Connection methodPush-in connection
Number of connections per position2
Contact typerolled
Flammability rating according to UL 94V0
Degree of pollution3
Overvoltage categoryIII
Assembly instructionsTo ensure correct use, installation in housing with IP54 protection or better is required

Material data

Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC

Standards and Regulations

Constructional and testing regulationsDIN EN 61984
DIN EN 60664
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1423961 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 5
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Pin
Number of poles (EF001391) 5
Diameter plug-in contact (EF007320) 2.5 mm
Rated current In (EF008250) 16 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 230 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Other
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.25 mm²
Connectable conductor cross section multi-wired (EF007343) 0.25 mm²
Material of contact surface (EF004020) Silver
Material of contact insert (EF008521) Other
Material contact (EF007544) Copper
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) No
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 14.6 mm
Height (EF000040) 34.1 mm
Depth (EF000049) 36 mm
