HC-HPR-D07-SHFH-1SSM20-EMR-BK 1424641 PHOENIX CONTACT Housing
HC-HPR-D07-SHFH-1SSM20-EMR-BK
1424641
PHOENIX CONTACT
1 Pcs.
Housing

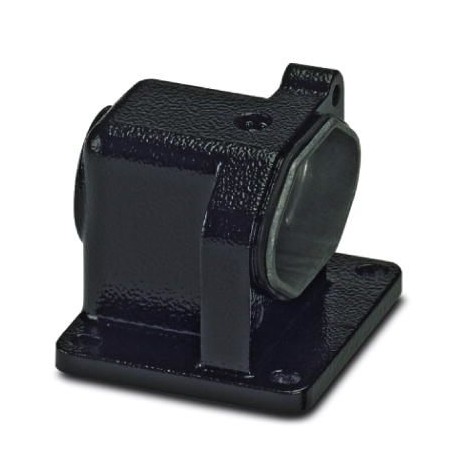

D7 socket housing, for screw locking, material: Zinc die-cast, cable outlets: 1, side, 1x M20, height: 41.5 mm, cable gland: without, protective cap: no, Railway applications, for high EMC and environmental requirements, HPR series, closed base
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424641 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626375694 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 (with sealing screw) |
|---|---|
| IP68 (0.4 bar / 30 min. with sealing screw) | |
| IP69K (ISO 20653:2013-02) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | for contact insertsHC-D7, D8, A3, A4, HS2-D7,Q5, Q7 |
|---|---|
| Size | D7 |
| Housing type | Box mounting bases |
| Color | black |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 1x M20 |
| Protective cover | no |
| Material | Zinc die-cast |
| Housing material | Zinc die-cast |
| Housing surface material | Powder-coated, black |
| Assembly instructions | M4 locking screw, slotted hexagon head screw (wrench size 7), tightening torque: 1 Nm. The seal of the pin contact insert should be removed. Max. thread length of the screw connection: 6 mm |
| Connection | Mount contact insert with sealing screw in the housing |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 51 mm |
| Height (EF000040) | 41.5 mm |
| Depth (EF000049) | 52 mm |
| Type of housing (EF006980) | Socket case |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Powder coated |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Metric |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Screw |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK09 |
