View larger
Images are for illustrative purposes only. Please refer to data sheet for details

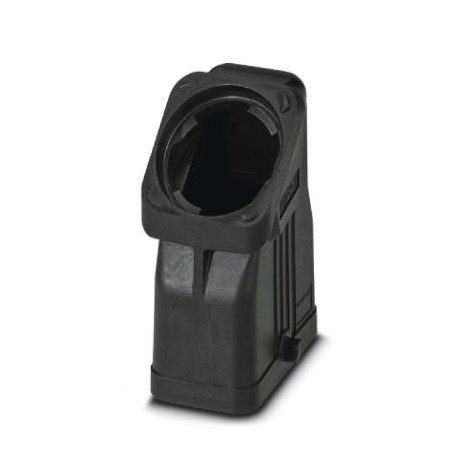

HC-EVO-M1-HHFS-PLBK 1424436 PHOENIX CONTACT Housing
HC-EVO-M1-HHFS-PLBK
1424436
PHOENIX CONTACT
1 Pcs.
Housing
Plastic overhead housing, with bayonet flange for the EVO-D cable gland, M1, for longitudinal flange, for modular contact brackets of single module width, without EVO cable gland
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424436 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626372556 |
| Weight per Piece (excluding packing) | 43.800 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Degree of protection of housing (NEMA) | 12 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | for single module width modular contact inserts from the HEAVYCON modular system |
|---|---|
| Size | M1 |
| Housing type | Sleeve housing |
| Color | black |
| Locking type | for single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| lateral | |
| Screw connection | none |
| Protective cover | no |
| Housing material | PA |
| Flammability rating according to UL 94 | V0 |
| Connection | The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 2 sizes. It enables the creation of a straight or lateral cable outlet. The EVO screw connection is mounted by hand or with the aid of a pipe wrench, for example. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 30.4 mm |
| Height (EF000040) | 72 mm |
| Depth (EF000049) | 50 mm |
| Type of housing (EF006980) | Plug case |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | None |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Bayonet |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK06 |
