View larger
Images are for illustrative purposes only. Please refer to data sheet for details

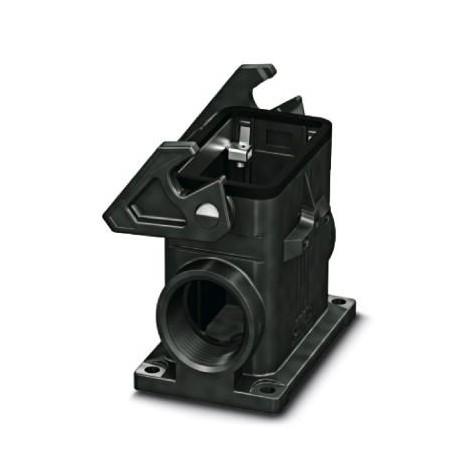

HC-EVO-B10-SHWS-2SSM20-PLRBK 1421354 PHOENIX CONTACT Housing
HC-EVO-B10-SHWS-2SSM20-PLRBK
1421354
PHOENIX CONTACT
1 Pcs.
Housing
B10 socket housing, with longitudinal flange, material: PA, cable outlets: 2, side, 2x M20, height: 74 mm, cable gland: without, Standard, including 2x reduction adapters
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1421354 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 594 (C-2-2017) |
| GTIN | 4055626264868 |
| Weight per Piece (excluding packing) | 169.000 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Degree of protection of housing (NEMA) | 12 (UL 50e) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B10, BB18, DD42, M, K8/24, HV03-I-PT, HC- 3-E...C |
|---|---|
| Size | B10 |
| Housing type | Box mounting bases |
| Color | black |
| Locking type | with single locking latch |
| No. of cable outlets | 2 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 2x M20 |
| Housing material | PA |
| Seal material | NBR |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 |
| Assembly instructions | Two plastic reductions M32 to M20 are provided |
| Connection | One of the two openings for the screw connections is sealed but can be broken open using a screwdriver. |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
