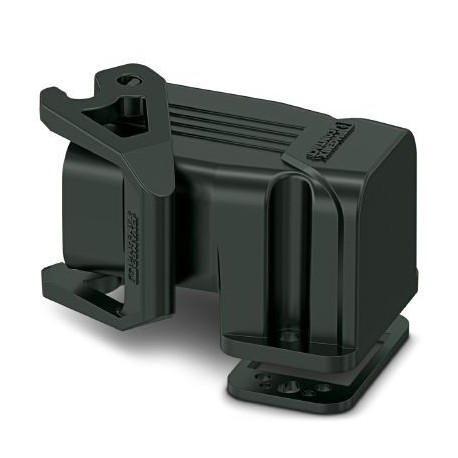

PHOENIX CONTACT HC-COM-BAWS-PL-BK HC-COM-BAWS-PL-BK 1012433 PHOENIX CONTACT Panel mounting base COM, with single locking latch, material: PA, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-COM-BAWS-PL-BK 1012433 PHOENIX CONTACT Panel mounting base COM, with single locking latch, material: PA, ..

HC-COM-BAWS-PL-BK

1012433

PHOENIX CONTACT

1 Pcs.

Panel mounting base COM, with single locking latch, material: PA, height: 41.7 mm, cable gland: none, support sleeve: no, Standard COM recessed housing, with longitudinal flange, material: PA, height: 36 mm, cable gland: without, Standard

Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1012433
Packing unit1 pc
Catalog pagePage 652 (C-2-2019)
GTIN4055626488592
Weight per Piece (excluding packing)0.000 g
Custom tariff number85389099
Country of originCN (China)

Drawings

Dimensional drawing

Dimensional drawing

Back to top

Dimensions

Height41.7 mm
Width64.5 mm
Length46.6 mm
Back to top

Ambient conditions

Degree of protection (IP)IP66
Ambient temperature (operation)-40 °C ... 125 °C
Back to top

General

SizeCOM
Housing typePanel mounting base
Colorblack
Locking typewith single locking latch
Screw connectionnone
Housing materialPA
Seal materialNBR
Material lockPA
Flammability rating according to UL 94V0
Back to top

Standards and Regulations

Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 10.0.127440202
eCl@ss 4.027140816
eCl@ss 4.127140816
eCl@ss 5.027143424
eCl@ss 5.127261200
eCl@ss 6.027261200
eCl@ss 7.027440202
eCl@ss 8.027440202
eCl@ss 9.027440202
Back to top

ETIM

ETIM 4.0EC000437
ETIM 5.0EC000437
ETIM 6.0EC000437
ETIM 7.0EC000437
Back to top

UNSPSC

UNSPSC 6.0131261502
UNSPSC 7.090131261502
UNSPSC 1131261502
UNSPSC 12.0131261502
UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1012433 Connectors (EC000437)
Feature Name Feature Value
Width (EF000008) 49.5 mm
Height (EF000040) 36 mm
Depth (EF000049) 64 mm
Type of housing (EF006980) Housing extension
Housing material (EF001596) Other
Coating housing (EF001601) Other
Housing colour (EF000136) Black
Position cable feed (EF008218) Other
Position of the shackle (EF008459) Cover
With cable screw gland (EF000735) No
Mounting method of the cable gland (EF012210) None
With hinged lid (EF000117) No
With distance piece (EF005072) No
With sealing (EF005610) Yes
Type of locking (EF000208) Single locking lever
Operating temperature (EF002393) -40 °C
EMC-version (EF001062) No
Degree of protection (IP), mounted (EF007466) IP66
Impact strength (EF004293) IK06
