View larger
Images are for illustrative purposes only. Please refer to data sheet for details

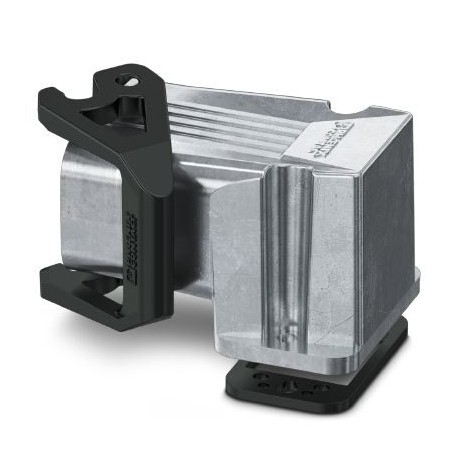

HC-COM-BAWS-EL-AL 1078593 PHOENIX CONTACT Panel mounting base COM, with single locking latch, material: Die-..
HC-COM-BAWS-EL-AL
1078593
PHOENIX CONTACT
1 Pcs.
Panel mounting base COM, with single locking latch, material: Die-cast aluminum, salt water resistant, height: 41.7 mm, cable gland: none, support sleeve: no, Standard
COM recessed housing, with longitudinal flange, material: Die-cast aluminium, seawater resistant, height: 37.5 mm, cable gland: without, Standard
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1078593 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 653 (C-2-2019) |
| GTIN | 4055626794112 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Back to top
Back to top
Back to top
Back to top
Back to top
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | COM |
|---|---|
| Housing type | Panel mounting base |
| Color | gray aluminum |
| Locking type | with single locking latch |
| Screw connection | none |
| Housing material | Die-cast aluminum, salt water resistant |
| Seal material | NBR |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440202 |
|---|---|
| eCl@ss 4.0 | 27140816 |
| eCl@ss 4.1 | 27140816 |
| eCl@ss 5.0 | 27143424 |
| eCl@ss 5.1 | 27261200 |
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440202 |
| eCl@ss 8.0 | 27440202 |
| eCl@ss 9.0 | 27440202 |
UNSPSC
| UNSPSC 6.01 | 31261502 |
|---|---|
| UNSPSC 7.0901 | 31261502 |
| UNSPSC 11 | 31261502 |
| UNSPSC 12.01 | 31261502 |
| UNSPSC 13.2 | 31261501 |
| UNSPSC 18.0 | 31261501 |
| UNSPSC 19.0 | 31261501 |
| UNSPSC 20.0 | 31261501 |
| UNSPSC 21.0 | 31261501 |
