View larger
Images are for illustrative purposes only. Please refer to data sheet for details

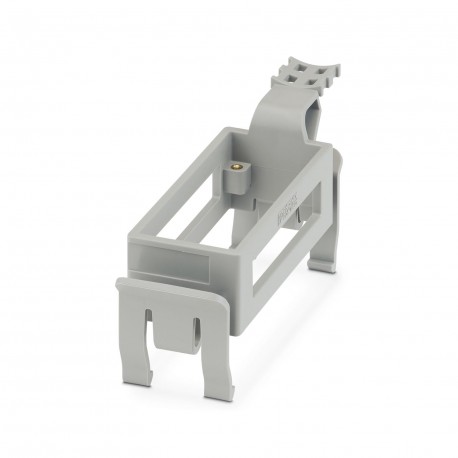

HC-CIF-B16-HFWL-PL 1424336 PHOENIX CONTACT DIN rail mounting frame
HC-CIF-B16-HFWL-PL
1424336
PHOENIX CONTACT
1 Pcs.
DIN rail mounting frame
Connector mounting frame, construction: B16, For contact inserts, Top frame
DIN rail mounting frame, design: B16, For contact inserts, Top frame
Connectors > Fixing element for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424336 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 692 (C-2-2017) |
| GTIN | 4055626370743 |
| Weight per Piece (excluding packing) | 45.900 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
General
| Size | B16 |
|---|---|
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Color | traffic grey |
| Note | for B16, BB32, DD72, HS6, HV6 contact inserts and B16 module frame |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of fixing element (EF012206) | Rail bracket |
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 42 mm |
| Height (EF000040) | 61 mm |
| Depth (EF000049) | 144 mm |
| Type of mounting rail (EF012209) | DIN rail (top hat rail) |
