PHOENIX CONTACT HC-B24/16-ADP-SS HC-B24/16-ADP-SS 1034216 PHOENIX CONTACT Adapter plate View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B24/16-ADP-SS 1034216 PHOENIX CONTACT Adapter plate

HC-B24/16-ADP-SS

1034216

PHOENIX CONTACT

1 Pcs.

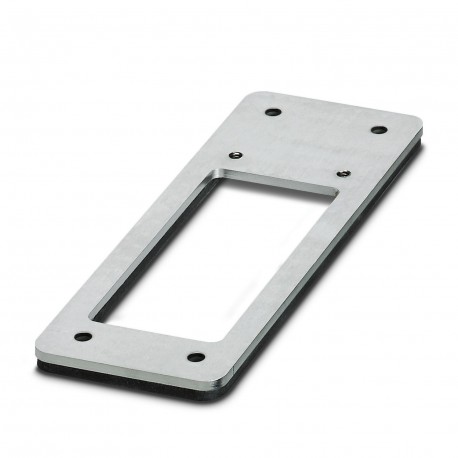

Adapter plate Adapter plate, construction: B24 to B16 Adapter plate, design: B24 to B16

Connectors > Adapter plate industrial connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor wall cutouts of type B24
Product properties
Product typeAdapter plate
TypeB24
Seal presentyes
Data management status
Article revision00
Dimensions
Dimensional drawingmswxzpqbch.jpg
Width53 mm
Height5 mm
Length151 mm
Drill hole distance, horizontal130 mm
Drill hole distance, vertical32 mm
Hole diameter5.5 mm
Material specifications
MaterialStainless steel 1.4301/AISI 304
Seal materialNBR/SBR
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP54
IP65
Ambient temperature (operation)-40 °C ... 125 °C
Mounting
Assembly noteTorque of the mounting screws 1 ... 2 Nm

ETIM for 1034216 Connectors (EC002309)
Feature Name Feature Value
Width (EF000008) 53 mm
Height (EF000040) 5 mm
Shape of opening (EF006256) Rectangular
Number of openings (EF005591) 1
Material adapter plate (EF007539) Stainless steel
With sealing (EF005610) Yes
Degree of protection (IP), mounted (EF007466) IP54

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
