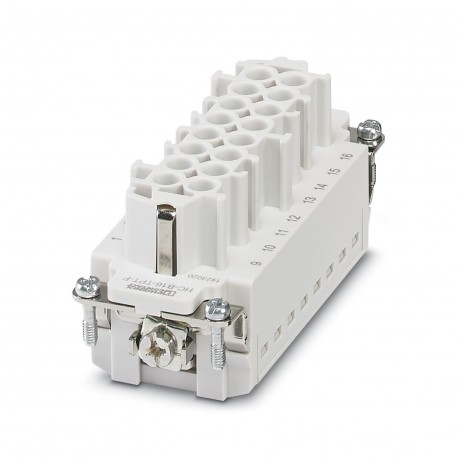

PHOENIX CONTACT HC-B16-I-TPT-F HC-B16-I-TPT-F 1423020 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B16-I-TPT-F 1423020 PHOENIX CONTACT Contact insert

HC-B16-I-TPT-F

1423020

PHOENIX CONTACT

1 Pcs.

Contact insert Contact insert, number of poles: 16+PE, size: B16, number of connections per pole: 2, Female, Push-in connection, 500 V, 16 A, 0.25 mm² ... 1.5 mm², Application: Power Contact insert, number of positions: 16+PE, size: B16, number of connections per position: 2, Socket, Push-in connection, 500 V, 16 A, 0.25 mm2 ... 1.5 mm2, application: Power

Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralUse only flexible conductors with ferrule (in conjunction with CRIMPFOX 6 only)
GeneralConnectors may be operated only when there is no load/voltage.
Mounting
Assembly noteTo ensure correct use, installation in housing with IP54 protection or better is required
Product properties
Product typeContact insert with a fixed no. of positions
SeriesHC-B
ApplicationPower
TypeB16
B32
Number of positions16
Connection profile16+PE
Contact numbering1 - 16
Number of connections per position2
Data management status
Article revision03
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Dimensions
Dimensional drawingrqzhxwghku.jpg
Width34 mm
Height34.6 mm
Length84 mm
Drill hole distance, horizontal77.5 mm
Mechanical characteristics
Contact diameter2.5 mm
Connection data
Connection technology
Connection technologyPush-in connection
Number of connections per position2
Conductor connection
Conductor cross section0.25 mm² ... 1.5 mm²
Connection cross section AWG24 ... 16
Tightening torque0.8 Nm ... 1.2 Nm (PE connection)
0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire8 mm ±1 mm
Electrical properties
Rated voltage (III/3)500 V
Rated surge voltage6 kV
Rated current16 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 500
Material specifications
Flammability rating according to UL 94V0
Contact materialCopper alloy
Contact surface materialAg
Contact carrier materialPC
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 125 °C
Standards and regulations
Constructional and testing regulationsDIN EN 61984
DIN EN 60664
IEC 60352
TestsDIN EN 61984
DIN EN 60664
IEC 60352
Testing
Standards/regulationsPC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

ETIM for 1423020 Connectors (EC000438)
Feature Name Feature Value
Number of power contacts (EF012216) 16
Number of control contacts (EF012217) 0
Contact insert without contacts (EF007324) No
Contact type (EF001587) Bus
Number of poles (EF001391) 16
Diameter plug-in contact (EF007320) 2.5 mm
Material connector insert (EF007545) Thermoplastic
Rated current In (EF008250) 16 A
Ambient temperature (EF002386) 125 °C
Operating temperature (EF002393) -40 °C
Rated voltage (EF000228) 500 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 3
Type of electric connection (EF003961) Spring clamp connection
With wire protection (EF000550) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.25 mm²
Connectable conductor cross section multi-wired (EF007343) 0.25 mm²
Material of contact surface (EF004020) Other
Material of contact insert (EF008521) Thermoplastic
Material contact (EF007544) Other copper alloys
Inflammability class of insulation material according to UL94 (EF002521) V0
With protective conductor (EF007468) Yes
Min. number of insertion cycles (EF012212) 500
Width (EF000008) 34 mm
Height (EF000040) 34.6 mm
Depth (EF000049) 84 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
