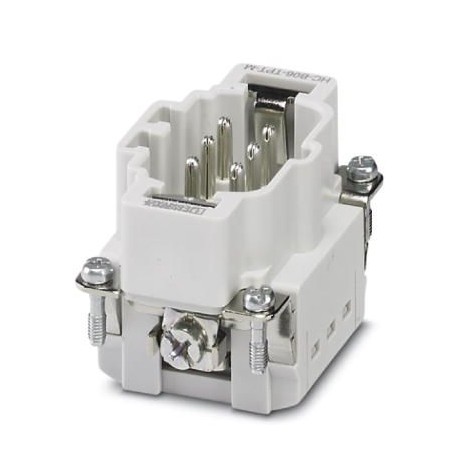

HC-B06-I-TPT-M 1423015 PHOENIX CONTACT Contact insert
HC-B06-I-TPT-M
1423015
PHOENIX CONTACT
1 Pcs.
Contact insert
Contact insert, number of poles: 6+PE, size: B6, number of connections per pole: 2, Male, Push-in connection, 500 V, 16 A, 0.25 mm² ... 1.5 mm², Application: Power
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1423015 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 535 (C-2-2017) |
| GTIN | 4055626322582 |
| Weight per Piece (excluding packing) | 46.500 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Note | for housing HC-B 6 |
|---|---|
| Connectors may be operated only when there is no load/voltage. | |
| For solid conductors or stranded conductors with ferrules | |
| Connection method | Push-in connection |
| Number of connections per position | 2 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 6+PE |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | B6 |
| Contact numbering | 1 - 6 |
| Conductor cross section | 0.25 mm² ... 1.5 mm² (with ferrule) |
| Connection cross section AWG | 24 ... 16 (with ferrule) |
| Stripping length of the individual wire | 8 mm ±1 mm |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Connection | Connectors may only be actuated when there is no load/voltage. |
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22 and R23 acc. to DIN EN 45545-2 (Risk level HL1 - HL2) |
| PC: Fire protection in rail vehicles - requirement set R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Standards and Regulations
| Constructional and testing regulations | DIN EN 61984 |
|---|---|
| DIN EN 60664 | |
| IEC 60352 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 6 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | No |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 6 |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 16 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 500 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Spring clamp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.25 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.25 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 34 mm |
| Height (EF000040) | 32 mm |
| Depth (EF000049) | 50.5 mm |
