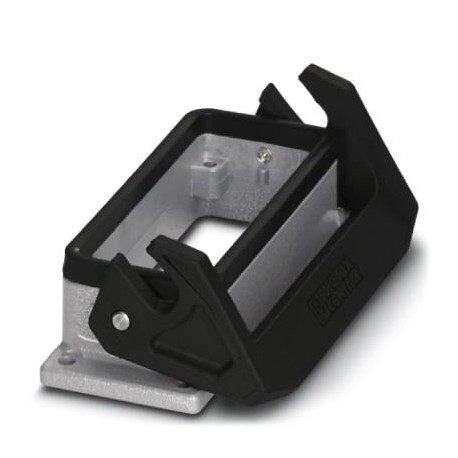

HC-B 16-AML-EVO 1412276 PHOENIX CONTACT HEAVYCON B16 panel mounting base with single locking latch, height: ..
HC-B 16-AML-EVO
1412276
PHOENIX CONTACT
50 Pcs.
HEAVYCON B16 panel mounting base with single locking latch, height: 29 mm, with flat gasket, with EVO plastic latch
Recessed housing HEAVYCON B16 with longitudinal flange, height 29 mm, with flat joint, with EVO plastic flange
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Dimensions
| Height | 29 mm |
|---|---|
| Width | 43 mm |
| Length | 114 mm |
| Length of the assembly cutout | 86 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 (When plugged in) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
|---|---|
| Size | B16 |
| Housing type | Panel mounting base |
| Locking type | with single locking latch |
| Torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Screw connection | none |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440202 |
|---|---|
| eCl@ss 5.1 | 27261200 |
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440202 |
| eCl@ss 8.0 | 27440202 |
| eCl@ss 9.0 | 27440202 |
UNSPSC
| UNSPSC 13.2 | 31261501 |
|---|---|
| UNSPSC 18.0 | 31261501 |
| UNSPSC 19.0 | 31261501 |
| UNSPSC 20.0 | 31261501 |
| UNSPSC 21.0 | 31261501 |
