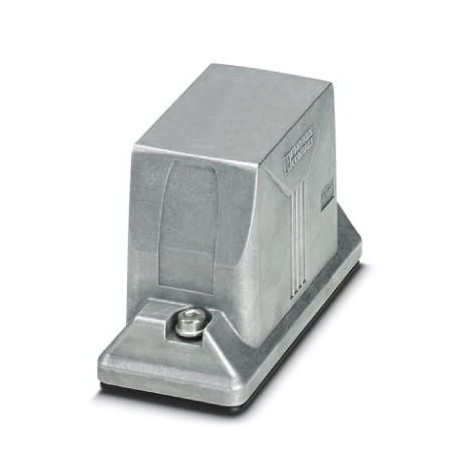

HC-ADV-B16-HLWH-BLANK-ELC-AL 1420053 PHOENIX CONTACT Housing
HC-ADV-B16-HLWH-BLANK-ELC-AL
1420053
PHOENIX CONTACT
1 Pcs.
Housing
B16 overhead housing, with screw lock, material: Die-cast aluminium, seawater resistant, variable, height: 74 mm, cable gland: without, Offshore/EMC, without threaded hole for a screw, conductive seal (EMC properties)
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1420053 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 646 (C-2-2017) |
| GTIN | 4055626201481 |
| Weight per Piece (excluding packing) | 279.700 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Dimensions
| Height | 74 mm |
|---|---|
| Width | 57 mm |
| Length | 125.4 mm |
| Length of the assembly cutout | 86 mm |
| Width of the assembly cutout | 35 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| IP68 (0.2 bar/24 h) | |
| IP69K (ISO 20653:2013-02) | |
| Degree of protection of housing (NEMA) | 4 (UL 50e) |
| 4X (UL 50e) | |
| 12 (UL 50e) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | B16 |
|---|---|
| Housing type | Sleeve housing |
| Color | gray aluminum |
| Locking type | Screw locking |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
| Cable outlet | Variable |
| Screw connection | none |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Seal material | NBR, conductive |
| Material lock | Stainless steel |
| Assembly instructions | In order to guarantee that the ground conductor contact functions even when plugged in at an angle, the two panel mounting flanges must have sufficient electrical contact with the metal mounting panel. |
| Connection | To ensure optimum shielding, any insulating power coating must be removed from the profile gasket area on the control cabinet panel. Tightening torque of locking screw: 3 Nm. |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
