View larger
Images are for illustrative purposes only. Please refer to data sheet for details

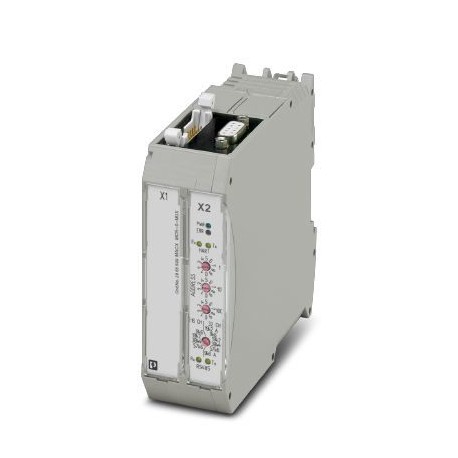

MACX MCR-S-MUX 2865599 PHOENIX CONTACT HART multiplexer
MACX MCR-S-MUX
2865599
PHOENIX CONTACT
1 Pcs.
HART multiplexer
HART multiplexer for the online configuration and diagnostics of HART-capable field devices as well as for the constant documentation of process variables and states via a PC or a management system, for installation on NS 35/7.5 or NS 32
Automation > Fieldbus, decentr. periphery - communication module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2865599 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 166 (C-5-2017) |
| GTIN | 4046356153898 |
| Weight per Piece (excluding packing) | 211.400 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (non-condensing) |
Field devices interface (HART)
| Channels | 16 or 32; adjustable using a switch |
|---|---|
| Connection method | Flat-ribbon cable, 14-pos. (inclusive) |
| Signal | HART FSK |
| HART specification | HART Field Communication Protocol Rev. 6.0 (downward compatible up to Rev 4.0); FSK Physical Layer Specification (Rev. 8.1) |
| Data transmission display | Two yellow "Tx" and "Rx" "HART" LEDs |
| Display error | Red "ERR" LED (flashes in case of an error in the HART bus) |
RS-485 interface
| Connection method | D-SUB-9 female connector |
|---|---|
| Signal | RS-485 |
| Data flow control/protocols | Compatible with OPC HART server, PDM, PRM, and FDT/DTM |
| Number of HART multiplexers per bus segment | Max 31 |
| Address setting | 0...127; using a rotary switch at the front |
| Data rate | 9600 / 19200 / 38400 / 57600 [bps]; via rotary switch at the front |
| Transmission length | ≤ 1200 m |
| Display | Two yellow "Tx" and "Rx" "RS-485" LEDs |
General data
| Supply voltage | 24 V DC |
|---|---|
| Supply voltage range | 18 V ... 31.2 V |
| Typical current consumption | 55 mA |
| Nominal power consumption | 1.35 W |
| Operating voltage display | Green "PWR" LED |
| Undervoltage monitoring | Yes (no faulty devices / output states) |
| Galvanic isolation of HART signal/RS-485 | 350 V AC |
| Galvanic isolation of HART signals between each other | 100 V DC (capacitive) |
| Galvanic isolation of HART signal/supply | 350 V AC |
| Galvanic isolation of RS-485/supply | 350 V AC |
| Error monitoring | Processor error: The "PWR" LED flashes; error in the HART communication: the "ERR" LED flashes |
| Conformance | CE-compliant |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027210107eCl@ss 4.127210107eCl@ss 5.027210107eCl@ss 5.127210107eCl@ss 6.027210107eCl@ss 7.027210107eCl@ss 8.027242608eCl@ss 9.027242608
| Feature Name | Feature Value |
|---|---|
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 35.2 mm |
| Height (EF000040) | 108.8 mm |
| Depth (EF000049) | 113.55 mm |
