View larger
Images are for illustrative purposes only. Please refer to data sheet for details

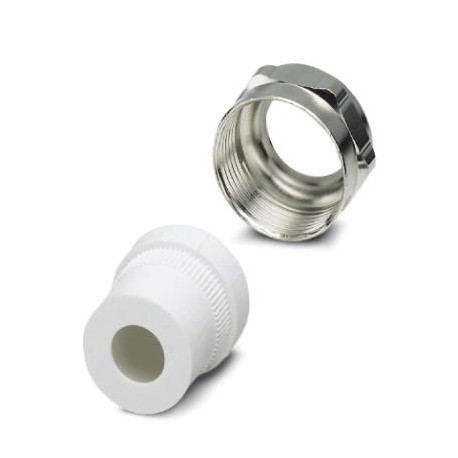

VC-M-KV-PG21(11,5-15,5) 1854035 PHOENIX CONTACT Half screw connection
VC-M-KV-PG21(11,5-15,5)
1854035
PHOENIX CONTACT
5 Pcs.
Half screw connection
Pg21 split cable gland, metallic, consisting of a sealing rubber with a drill and a clamping screw, for construction housings 2-4, cable [mm] 11.5 - 13.5
Cables > Cable gland
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1854035 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 45 (C-2-2013) |
| GTIN | 4017918145941 |
| Weight per Piece (excluding packing) | 33.320 g |
| Custom tariff number | 74153300 |
| Country of origin | PL (Poland) |
General
| Note | Adapter screw connections are available on request for large cable dimensions, from Pg16 to Pg21 and from Pg21 to Pg29 |
|---|---|
| No. of conductors | 1 |
| Material, pressure screw | Nickel-plated brass |
| Seal material | TPE |
| Cable seal material | TPE |
| Sealing material | TPE |
| Shielded | no |
| Thread type on seal side | Pg21 |
| Tightening torque, union nut | 10.00 Nm |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127149100eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Wrench width (EF000177) | 30 mm |
| Suitable for cable diameter (EF005466) | 11.5 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Thermoplastic Elastomer (TPE) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | Other |
| Model (EF000010) | Straight |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
