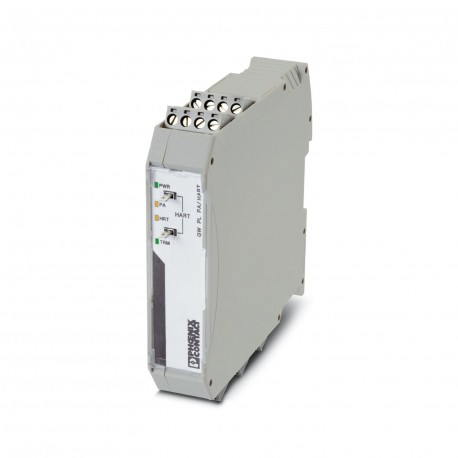

GW PL PA/HART 2316361 PHOENIX CONTACT Protocol converter
GW PL PA/HART
2316361
PHOENIX CONTACT
1 Pcs.
Protocol converter
HART to PROFIBUS PA Protocol Converter
Automation > PLC communication module
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Product type | Interface converter |
| Data management status | |
| Article revision | 04 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 2 |
Electrical properties
| Supply | |
| Supply voltage range | 18.5 V DC ... 30 V DC () |
| Nominal supply voltage | 24 V DC |
| Max. current consumption | 70 mA |
Connection data
| Supply | |
| Connection method | COMBICON plug-in screw terminal block |
| Conductor cross section, flexible | 0.20 mm² ... 2.50 mm² |
| Conductor cross section, rigid | 0.20 mm² ... 2.50 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Interfaces
| Data: PROFIBUS PA | |
| Data rate | 31.25 kbps |
| Number of connections | 1 |
| Connection method | COMBICON |
| No. of channels | 1 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Connection technology | Screw connection |
| Termination resistor | Switchable |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Protocols supported | HART, PROFIBUS PA |
| Data: HART FSK | |
| Number of connections | 3 |
| Connection method | COMBICON |
| No. of channels | 4 (Active/Passive HART devices) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Connection technology | Screw connection |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.02 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Dimensions
| Dimensional drawing |  |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
Material specifications
| Color | gray |
| Housing material | PA V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | 2000 m |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Shock | 30g, 18 ms |
| Vibration (operation) | 5g, 10 Hz ... 150 Hz |
Approvals
| Ex data | |
| ATEX | PRESAFE 16ATEX7686X, II 3G, Ex nA IIC T4 Gc |
| IECEx | IECEx PRE 16.0001X, Ex nA IIC T4 Gc |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D Class I, Zone 2, AEx nA IIC T4, Ex nA IIC T4 GcX |
Mounting
| Mounting type | DIN rail: 35 mm |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
| Feature Name | Feature Value |
|---|---|
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 3 |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Redundancy (EF003156) | No |
| Type of data transmission (EF008225) | Serial |
| Transmission rate (EF003271) | 31250 kBit/s |
| With potential separation (EF003272) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 99 mm |
| Depth (EF000049) | 114.5 mm |
