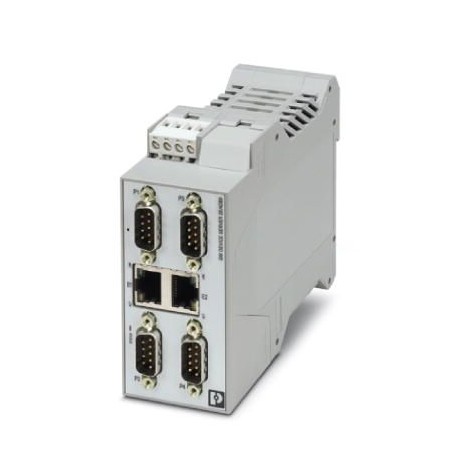

PHOENIX CONTACT GW DEVICE SERVER 2E/4DB9 GW DEVICE SERVER 2E/4DB9 2702763 PHOENIX CONTACT Interface converters View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GW DEVICE SERVER 2E/4DB9 2702763 PHOENIX CONTACT Interface converters

GW DEVICE SERVER 2E/4DB9

2702763

PHOENIX CONTACT

1 Pcs.

Interface converters Serial device server for the conversion of serial data (RS-232/422/485) to Ethernet data (RJ45). Compatible with TCP and UDP protocols. COM port redirection software and Windows drivers can be downloaded. It comprises two RJ45 connections and four D-SUB-9 connections.

Automation > PLC communication module
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2702763
Packing unit1 pc
Catalog pagePage 342 (C-6-2017)
GTIN4055626339184
Weight per Piece (excluding packing)193.000 g
Custom tariff number85176200
Country of originUS (United States)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width45 mm
Height99 mm
Depth115 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Altitude< 2000 m
Degree of protectionIP20
Noise immunityEN 61000-6-2:2005

General

Electrical isolationIEC UL 61010-1 (VCC // Ethernet)
Test voltage data interface/data interface1.5 kVrms(50 Hz, 1 min.)
Test voltage data interface/power supply1.5 kVrms
1.5 kVrms(50 Hz, 1 min.)
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 61000-6-4
Net weight193 g
Housing materialPA 6.6
Colorgray
MTBF63.5 Years (Telcordia standard, 25°C temperature, 50% stress, Environmental Factor = 1.0)
42.3 Years (Telcordia standard, 40°C temperature, 50% stress, Environmental Factor = 1.5)
ConformanceCE-compliant
UL, USAUL 61010-1
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D T4A

Power supply

Supply voltage range10.8 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
Max. current consumption120 mA (24 V DC)
Typical current consumption110 mA (24 V DC)
Conductor cross section flexible max.2.50 mm²
Conductor cross section flexible min.0.20 mm²
Conductor cross section AWG max.12
Conductor cross section AWG min.24

Serial interface

Interface 1Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
InterfaceEthernet
No. of ports2
Connection methodRJ45 socket, shielded
Transmission length≤ 100 m (shielded twisted pair)
Protocols supportedTCP/IP, UDP, ASCII
Auxiliary protocolsARP, DHCP (Client), PING
Serial transmission speed10/100 Mbps, auto negotiation
InterfaceRS-232
Number of connections4
Connection methodD-SUB 9 plug
File format/coding5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
Transmission length15 m
Pin assignment
Data flow control/protocolsSoftware handshake, Xon/Xoff or hardware handshake RTS/CTS
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
InterfaceRS-422
Number of connections4
Connection methodD-SUB 9 plug
File format/coding5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
Transmission length≤ 1200 m
Termination resistor
120 Ω (configurable)
Pin assignment
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
InterfaceRS-485
Number of connections4
Connection methodD-SUB 9 plug
File format/coding5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
Termination resistor120 Ω (configurable)
Pin assignment
Serial transmission speed0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps

Function

Web-based managementyes
ManagementWeb-based management
Status and diagnostic indicators

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2:2005
Standards/regulationsEN 55022, EN 55024
ConformanceCE-compliant
UL, USAUL 61010-1
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D T4A
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2702763 PLC's (EC001423)
Feature Name Feature Value
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 4
Number of HW-interfaces RS-422 (EF003022) 4
Number of HW-interfaces RS-485 (EF003023) 4
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
Radio standard GSM (EF008524) No
Radio standard UMTS (EF008525) No
IO link master (EF007298) No
Redundancy (EF003156) No
With potential separation (EF003272) No
SIL according to IEC 61508 (EF009889) None
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 45 mm
Height (EF000040) 99 mm
Depth (EF000049) 115 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
