RTO 3-PE-TC 3049958 PHOENIX CONTACT Ground modular terminal block

RTO 3-PE-TC

3049958

PHOENIX CONTACT

50 Pcs.

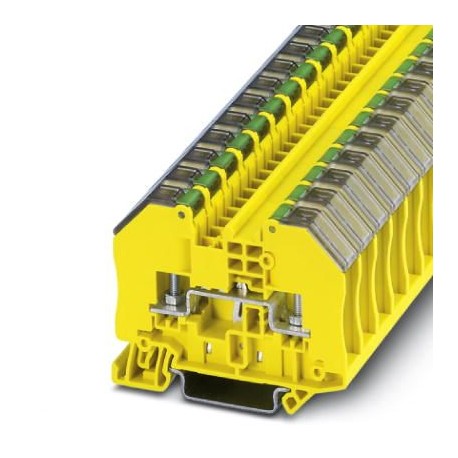

Ground modular terminal block Ground terminal block with stud connection technology and transparent protective cover, cross-section: 0.1 - 2.5 mm², AWG: 26 - 14, width 12.3 mm, colour: green-yellow

Automation > Ground terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3049958
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 377 (C-1-2017)
GTIN4046356431378
Weight per Piece (excluding packing)25.120 g
Custom tariff number85369010
Country of originCN (China)

General

NoteNote: the BE-RT... path extension is to be used for non-insulated cable lugs (see accessories).
Number of levels1
Number of connections2
Potentials1
Nominal cross section2.5 mm²
Colorgreen-yellow
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Nominal current IN24 A
Nominal voltage UN1000 V
Open side panelYes
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C

Dimensions

Width12.3 mm
End cover width2.2 mm
Length66 mm
Height NS 35/7,551 mm
Height NS 35/1558.5 mm

Connection data

NotePlease observe the current carrying capacity of the DIN rails.
Connection methodBolt connection
Screw threadM3
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm
Connection in acc. with standardIEC 60947-7-2
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.1 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule with plastic sleeve min.0.1 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Cable lug connection according to standardDIN 46234
Min. cross section for cable lug connection0.5 mm²
Max. cross section for cable lug connection2.5 mm²
Hole diameter, min.3.2 mm
Cable lug width, max.6 mm
Bolt diameter3 mm
Cable lug connection according to standardDIN 46237
Min. cross section for cable lug connection1 mm²
Max. cross section for cable lug connection2.5 mm²
Hole diameter, min.3.2 mm
Cable lug width, max.6 mm
Bolt diameter3 mm

Standards and Regulations

Connection in acc. with standardIEC 60947-7-2
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3049958 Terminal blocks (EC000901)
Feature Name Feature Value
Type of electrical connection 1 (EF002526) Bolt connection
Type of electrical connection 2 (EF002527) Bolt connection
Number of clamp positions per level (EF002660) 2
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 12.3 mm
Height (EF000040) 66 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Green/yellow
