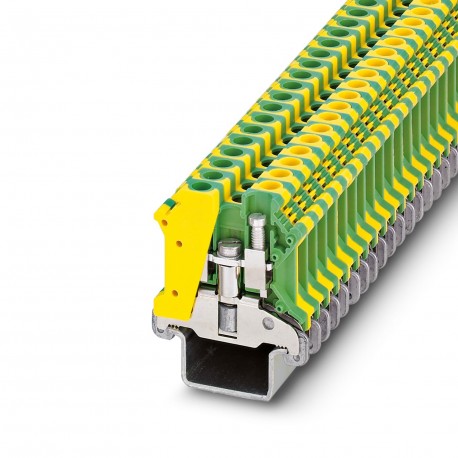

USLKG 6 N-1 0444048 PHOENIX CONTACT Ground modular terminal block

USLKG 6 N-1

0444048

PHOENIX CONTACT

50 Pcs.

Ground modular terminal block Ground terminal, number of connections: 2, number of poles: 1, connection type: Screw connection, cross-section: 0.2 mm² - 10 mm², fixing type: PE foot with fixing screw, M4, mounting class: NS 35/15-2.3, color: yellow-green Ground terminal, number of connections: 2, number of positions: 1, connection method: Screw connection, cross section: 0.2 mm2 - 10 mm2, mounting: PE foot with mounting screw, M4, mounting type: NS 35/15-2,3, color: green-yellow

Automation > Ground terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeGround terminal block
Number of positions1
Number of connections2
Number of rows1
Data management status
Article revision17
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition1.31 W
Connection data
Grounding footYes
Number of connections per level2
Nominal cross section6 mm²
Level 1 above 1 below 1
Screw threadM4
NotePlease observe the current carrying capacity of the DIN rails.
Tightening torque1.5 ... 1.8 Nm
Stripping length10 mm
Connection in acc. with standardIEC 60947-7-2
Conductor cross section rigid0.2 mm² ... 10 mm²
Cross section AWG24 ... 8 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 6 mm²
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD  Ex eb IIC
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories1205066 SZS 1,0X4,0 VDE
1201442 E/UK
Torque range for PE foot1.5 Nm ... 1.8 Nm
output(Permanent)
Ex connection data General
Torque range1.5 Nm ... 1.8 Nm
Nominal cross section6 mm²
Rated cross section AWG10
Connection capacity rigid0.2 mm² ... 10 mm²
Connection capacity AWG24 ... 8
Connection capacity flexible0.2 mm² ... 6 mm²
Connection capacity AWG24 ... 10
Dimensions
Width8.2 mm
Height42.5 mm
Depth on NS 3252 mm
Depth on NS 35/7,547 mm
Depth on NS 35/1554.5 mm
Material specifications
Colorgreen-yellow
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
General
Terminal block mounting1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4)
Mechanical data
Open side panelNo
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-2
Mounting
Mounting typeNS 35/15-2,3
Terminal block mounting1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
