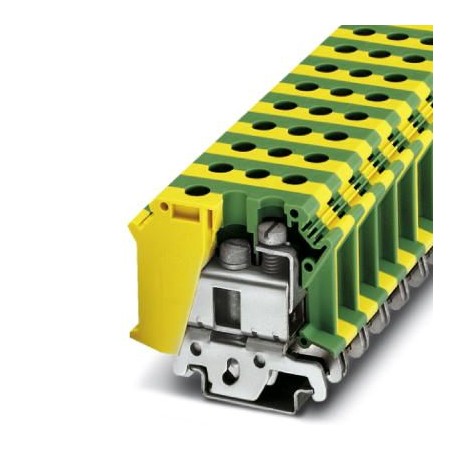

UISLKG 35 0443065 PHOENIX CONTACT Installation ground terminal block, Screw connection, Cross section: 0.75 ..
UISLKG 35
0443065
PHOENIX CONTACT
50 Pcs.
Installation ground terminal block, Screw connection, Cross section: 0.75 mm²
Ground terminal block for distribution, For connection sections of 35 mm² / AWG 2 an NS 32 copper rail must be inserted... o NS 35..., nominal voltage: 800 V, nominal current: 125 A, number of connections: 2, number of poles: 1, cross-section: 0.75 mm² - 35 mm², type of fixation: PE foot with fixing screw, M5, mounting class: NS 35/7.5, NS 35/15, NS 32, colour: yellow-green
Automation > Ground terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Note | Use an NS 32... or NS 35... copper DIN rail for connection cross sections of 35 mm²/2 AWG. |
|---|---|
| Number of levels | 1 |
| Number of connections | 2 |
| Nominal cross section | 35 mm² |
| Color | green-yellow |
| Insulating material | PA |
| Flammability rating according to UL 94 | V2 |
General
| Rated surge voltage | 8 kV |
|---|---|
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-2 |
| Open side panel | nein |
| Number of positions | 1 |
Dimensions
| Width | 15 mm |
|---|---|
| Length | 55 mm |
| Height NS 35/7,5 | 51 mm |
| Height NS 35/15 | 58.5 mm |
| Height NS 32 | 56 mm |
Connection data
| Note | Please observe the current carrying capacity of the DIN rails. |
|---|---|
| Conductor cross section solid min. | 0.75 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 0.75 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section AWG min. | 18 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.75 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.75 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| 2 conductors with same cross section, solid min. | 0.75 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 0.75 mm² |
| 2 conductors with same cross section, stranded max. | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 10 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 6 mm² |
| Connection method | Screw connection |
| Stripping length | 16 mm |
| Screw thread | M6 |
| Tightening torque, min | 3.2 Nm |
| Tightening torque max | 3.7 Nm |
