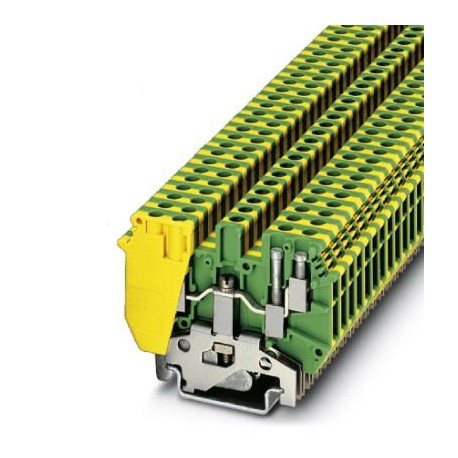

UDK 4-PE 2775184 PHOENIX CONTACT Ground modular terminal block

UDK 4-PE

2775184

PHOENIX CONTACT

50 Pcs.

Ground modular terminal block Ground terminal, double connection on each side, number of connections: 4, number of poles: 1, connection type: Screw connection, 1st floor, cross-section: 0.2 mm² - 6 mm², fixing type: PE foot with fixing screw, M3, mounting class: NS 35/7.5, NS 35/15, NS 32, color: yellow-green

Automation > Ground terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2775184
Packing unit50 pc
Catalog pagePage 433 (C-1-2017)
GTIN4017918068486
Weight per Piece (excluding packing)28.060 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels1
Number of connections4
Nominal cross section4 mm²
Colorgreen-yellow
Insulating materialPA
Flammability rating according to UL 94V2
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-2
Open side panelNo
Number of positions1
Relative insulation material temperature index (Elec., UL 746 B)125 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C

Dimensions

Length63.5 mm
Width6.2 mm
Height NS 35/7,547 mm
Height NS 35/1554.5 mm
Height NS 3252 mm

Connection data

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Stripping length8 mm
Internal cylindrical gageA3
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-2
Flammability rating according to UL 94V2

Environmental Product Compliance

REACh SVHC4-Nonylphenol, ethoxylated
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2775184 Terminal blocks (EC000901)
Feature Name Feature Value
PEN function possible (EF002544) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V2
Width (EF000008) 6.2 mm
Height (EF000040) 63.5 mm
Closing plate required (EF002525) No
Colour (EF000007) Green/yellow

Product Datasheet
