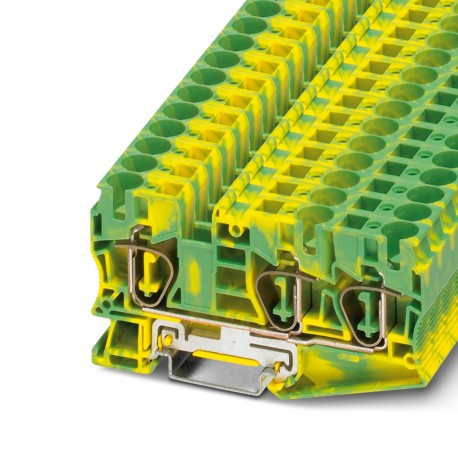

PHOENIX CONTACT ST 10-TWIN-PE ST 10-TWIN-PE 3035302 PHOENIX CONTACT Spring cage ground terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ST 10-TWIN-PE 3035302 PHOENIX CONTACT Spring cage ground terminal block

ST 10-TWIN-PE

3035302

PHOENIX CONTACT

25 Pcs.

Spring cage ground terminal block Spring-loaded earth terminal block, number of connections: 3, connection type: Spring connection, 1st floor, Sizing cross-section: 10 mm², cross-section: 0.2 mm² - 16 mm², mounting class: NS 35/7.5, NS 35/15, color: yellow-green Spring cage ground terminal block, number of connections: 3, connection method: Spring-cage connection, 1 level, Rated cross section: 10 mm2, cross section: 0.2 mm2 - 16 mm2, mounting type: NS 35/7,5, NS 35/15, color: green-yellow

Automation > Ground terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeGround terminal block
Area of applicationRailway industry
Machine building
Plant engineering
Number of connections3
Number of rows1
Data management status
Article revision03
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition1.82 W
Connection data
Grounding footYes
Number of connections per level3
Nominal cross section10 mm²
1 level
NotePlease observe the current carrying capacity of the DIN rails.
Stripping length15 mm
Internal cylindrical gageA6
Connection in acc. with standardIEC 60947-7-2
Conductor cross section rigid0.2 mm² ... 16 mm²
Cross section AWG24 ... 6 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 10 mm²
Conductor cross section, flexible [AWG]24 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 10 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 10 mm²
Nominal cross section10 mm²
Dimensions
Width10.2 mm
End cover width2.2 mm
Height95.4 mm
Depth on NS 35/7,550.3 mm
Depth on NS 35/1557.8 mm
Material specifications
Colorgreen-yellow
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelYes
Environmental and real-life conditions
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 2, bogie-mounted
Frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-2
Mounting
Mounting typeNS 35/7,5
NS 35/15

ETIM for 3035302 Terminal blocks (EC000901)
Feature Name Feature Value
PEN function possible (EF002544) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electrical connection 1 (EF002526) Spring clamp connection
Type of electrical connection 2 (EF002527) Clip connection
Number of clamp positions per level (EF002660) 3
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 10.2 mm
Height (EF000040) 95.4 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Green/yellow

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
