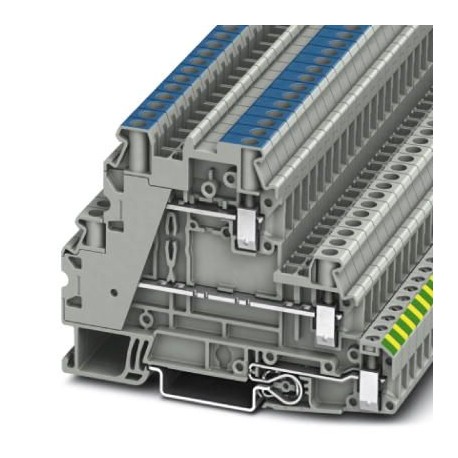

UT 4-PE/L/N 3214361 PHOENIX CONTACT Ground modular terminal block

UT 4-PE/L/N

3214361

PHOENIX CONTACT

50 Pcs.

Ground modular terminal block Ground terminal, nominal voltage: 500 V, nominal current: 30 A, number of connections: 5, connection type: Screw connection, Sizing cross-section: 4 mm², cross-section: 0.14 mm² - 6 mm², Screw connection, Sizing cross-section: 4 mm², cross-section: 0.14 mm² - 6 mm², mounting class: NS 35/7.5, NS 35/15, color: gray

Automation > Ground terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3214361
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 230 (C-1-2017)
GTIN4046356895705
Weight per Piece (excluding packing)31.350 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels3
Number of connections5
Potentials3
Nominal cross section4 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.02 W (the value is multiplied when connecting multiple levels)
Maximum load current36 A (with 6 mm² conductor cross section)
Nominal current IN30 A
Nominal voltage UN500 V
Maximum load current36 A (with 6 mm² conductor connection)
Nominal current IN30 A (with 4 mm² conductor cross section)
Nominal voltage UN500 V
Open side panelNo

Dimensions

Width6.2 mm
Length92.7 mm
Height60.1 mm
Height NS 35/7,561.7 mm
Height NS 35/1569.2 mm

Connection data

NotePlease observe the current carrying capacity of the DIN rails.
Connection methodScrew connection
Screw threadM3
Stripping length9 mm
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.10
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
Internal cylindrical gageA4
Connection methodScrew connection
Screw threadM3
Stripping length9 mm
Connection in acc. with standardIEC 60947-7-1
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.10
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
IEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3214361 Terminal blocks (EC000901)
Feature Name Feature Value
PEN function possible (EF002544) No
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 6.2 mm
Height (EF000040) 92.7 mm
Depth (EF000049) 60.1 mm
Closing plate required (EF002525) No
Colour (EF000007) EV000270
