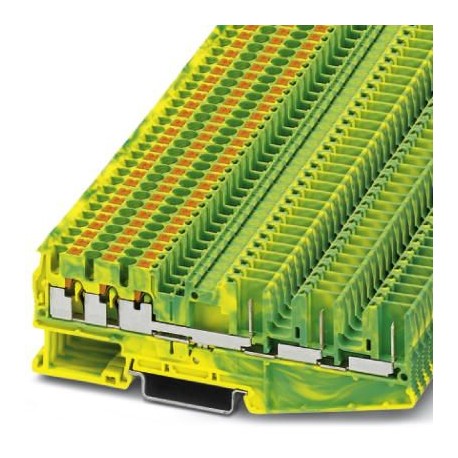

PT 2,5-HEXA/3P-PE 3040052 PHOENIX CONTACT Ground modular terminal block

PT 2,5-HEXA/3P-PE

3040052

PHOENIX CONTACT

50 Pcs.

Ground modular terminal block Terminal block, number of connections: 6, connection type: Push-in connection / plug-in connection, 1., 2. and 3rd floor, Sizing cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², mounting class: NS 35/7.5, NS 35/15, color: yellow-green

Automation > Ground terminal block
Modular TBs
