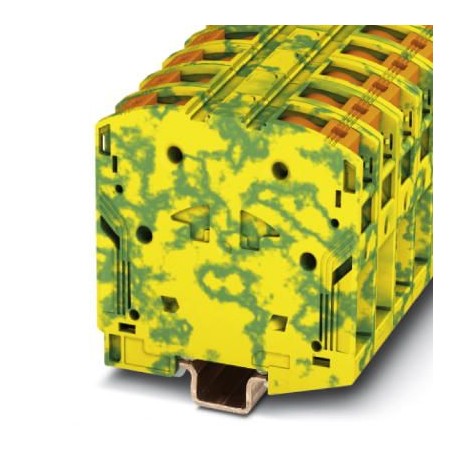

PTPOWER 50-PE 3260052 PHOENIX CONTACT Ground modular terminal block
PTPOWER 50-PE
3260052
PHOENIX CONTACT
10 Pcs.
Ground modular terminal block
Ground terminal, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 10 mm² - 70 mm², mounting class: NS 35/15, colour: yellow-green
Automation > Ground terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3260052 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 127 (C-1-2017) |
| GTIN | 4046356998758 |
| Weight per Piece (excluding packing) | 199.000 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Number of positions | 1 |
|---|---|
| Number of levels | 1 |
| Number of connections | 2 |
| Nominal cross section | 50 mm² |
| Color | green-yellow |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Nominal voltage UN | 1000 V AC |
| 1500 V DC | |
| Open side panel | No |
| Shock protection test specification | DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection | guaranteed |
| Finger protection | guaranteed |
| Oscillation, broadband noise test result | Test passed |
| Test specification, oscillation, broadband noise | DIN EN 50155 (VDE 0115-200):2008-03 |
| Test spectrum | Service life test category 2, bogie-mounted |
| Test frequency | f1= 5 Hz to f2= 250 Hz |
| ASD level | 6.12 (m/s2)2/Hz |
| Acceleration | 3.12 g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Shock test result | Test passed |
| Test specification, shock test | DIN EN 50155 (VDE 0115-200):2008-03 |
| Shock form | Half-sine |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Static insulating material application in cold | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| NF F16-101, NF F10-102 Class I | 2 |
| NF F16-101, NF F10-102 Class F | 2 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Connection data
| Note | Use an appropriate NS 35... copper or aluminum DIN rail for connection cross sections > 35 mm²/2 AWG. |
|---|---|
| Connection method | Power-Turn connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 10 mm² |
| Conductor cross section solid max. | 70 mm² |
| Conductor cross section AWG min. | 8 |
| Conductor cross section AWG max. | 2/0 |
| Conductor cross section flexible min. | 10 mm² |
| Conductor cross section flexible max. | 70 mm² |
| Min. AWG conductor cross section, flexible | 8 |
| Max. AWG conductor cross section, flexible | 2/0 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 50 mm² |
| Cross section with insertion bridge solid min. | 10 mm² |
| Cross section with insertion bridge, solid max. | 50 mm² |
| Cross section with insertion bridge stranded min. | 10 mm² |
| Cross section with insertion bridge, stranded max. | 50 mm² |
| Cross section with insertion bridge stranded, with ferrule without plastic sleeve min. | 10 mm² |
| Cross section with insertion bridge stranded, with ferrule without plastic sleeve max. | 50 mm² |
| Cross section with insertion bridge stranded, with ferrule without plastic sleeve min. | 10 mm² |
| Cross section with insertion bridge stranded, with ferrule with plastic sleeve max. | 50 mm² |
| Stripping length | 30 mm ... 32 mm |
| Internal cylindrical gage | A10 |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| PEN function possible (EF002544) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 10 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 10 mm² |
| Connectable conductor cross section solid-core (EF007337) | 10 mm² |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 2 |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Operating temperature (EF002393) | -60 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 20 mm |
| Height (EF000040) | 101 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Green/yellow |
