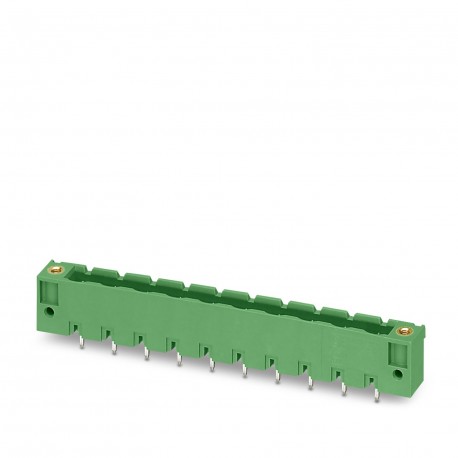

PHOENIX CONTACT GMSTBV 2,5/ 3-GF-7,62 CR3 GMSTBV 2,5/ 3-GF-7,62 CR3 1835817 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2):.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GMSTBV 2,5/ 3-GF-7,62 CR3 1835817 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2):..

GMSTBV 2,5/ 3-GF-7,62 CR3

1835817

PHOENIX CONTACT

50 Pcs.

PCB headers, nominal current: 12 A, rated voltage (III/2): 630 V, number of positions: 3, pitch: 7.62 mm, color: green, contact surface: Tin, mounting: Wave soldering Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: GMSTBV 2.5/.. -GF, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed

Connectors > Housing for rectangular connectors
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 12 A, rated voltage (III/2): 630 V, number of positions: 3, pitch: 7.62 mm, color: green, contact surface: Tin, mounting: Wave soldering

Key Commercial Data

Orderkey1835817
Packing unit1
GTIN4055626123462
Custom tariff number85366930

Dimensions

Pitch7.62 mm
Length of the solder pin3.9 mm
Pin dimensions1 x 1 mm

General

Range of articlesGMSTBV 2,5/..-GF
Insulating material groupI
Flammability rating according to UL 94V0
Colorgreen
Number of positions3

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127261200
eCl@ss 6.027261200
eCl@ss 7.027440202
eCl@ss 8.027440202
eCl@ss 9.027440202

ETIM

ETIM 5.0EC002637
ETIM 6.0EC000437
ETIM 7.0EC000437

UNSPSC

UNSPSC 13.231261501
