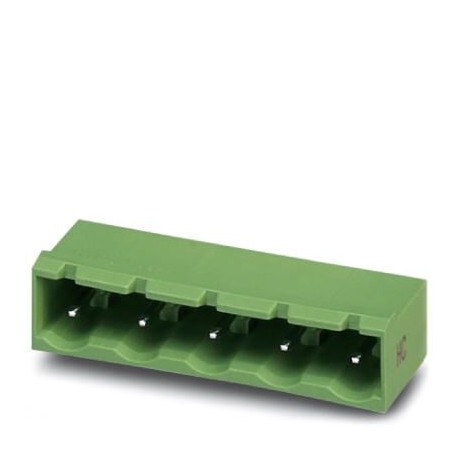

PHOENIX CONTACT GMSTBA 2,5 HC/ 2-G-7,62 BK GMSTBA 2,5 HC/ 2-G-7,62 BK 1813321 PHOENIX CONTACT PCB headers, nominal current: 16 A, rated voltage (III/2).. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GMSTBA 2,5 HC/ 2-G-7,62 BK 1813321 PHOENIX CONTACT PCB headers, nominal current: 16 A, rated voltage (III/2)..

GMSTBA 2,5 HC/ 2-G-7,62 BK

1813321

PHOENIX CONTACT

50 Pcs.

PCB headers, nominal current: 16 A, rated voltage (III/2): 630 V, number of positions: 2, pitch: 7.62 mm, color: black, contact surface: Tin, mounting: Wave soldering Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 16 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 2, family of articles: GMSTBA 2.5 HC/.. -G, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5 HC, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed PCB headers, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of positions: 2, pitch: 7.62 mm, color: black, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1813321
Packing unit1 pc
Minimum order quantity50 pc
GTIN4046356730938
Weight per Piece (excluding packing)1.200 g
Custom tariff number85366930
Country of originDE (Germany)

Drawings

Diagram

Diagram
Type: GMSTB 2,5 HCV/...-ST-7,62 with GMSTBA 2,5 HC/...-G-7,62

Back to top

Item properties

Brief article descriptionFeed-through header
Plug-in systemPOWER COMBICON 2,5
Type of contactMale connector
Range of articlesGMSTBA 2,5 HC/..-G
Pitch7.62 mm
Number of positions2
Mounting typeWave soldering
Pin layoutLinear pinning
Lockingwithout
Number of levels1
Back to top

Electrical parameters

Nominal current16 A
Nom. voltage630 V
Rated voltage500 V
Rated voltage (III/2)630 V
Rated voltage (II/2)1000 V
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)Nickel (1 - 3 µm Ni),
Metal surface soldering area (top layer)Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)Nickel (1 - 3 µm Ni)
Back to top

Material data - housing

Housing colorblack (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
Length [ l ]12 mm
Width [ w ]15.24 mm
Height [ h ]12.1 mm
Pitch7.62 mm
Height (without solder pin)8.6 mm
Solder pin [P]3.5 mm
Pin dimensions1 x 1 mm
Dimension a7.62 mm
Back to top

Dimensions for PCB design

Hole diameter1.4 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Minimum clearance - inhomogeneous field (III/3)5.5 mm
Minimum clearance - inhomogeneous field (III/2)5.5 mm
Minimum clearance - inhomogeneous field (II/2)5.5 mm
Minimum creepage distance value (III/3)6.3 mm
Minimum creepage distance value (III/2)3.2 mm
Minimum creepage distance value (II/2)5 mm
Back to top

Mechanical tests (A)

Insertion strength per pos. approx.7 N
Withdraw strength per pos. approx.5 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed
Back to top

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R10.6 mΩ
Insertion/withdrawal cycles50
Contact resistance R20.8 mΩ
Impulse withstand voltage at sea level9.8 kV
Power-frequency withstand voltage4.26 kV
Insulation resistance, neighboring positions> 9 TΩ
Back to top

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level9.8 kV
Power-frequency withstand voltage4.26 kV
Back to top

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger
Back to top

Vibration test

SpecificationIEC 60068-2-6:2007-12
ResultTest passed
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 - 60.1 Hz)
Acceleration5 g (60.1 - 150 Hz)
Test duration per axis2.5 h
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

ETIM for 1813321 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 7.62 mm
Modular spacing connections (EF006827) 7.62 mm
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
