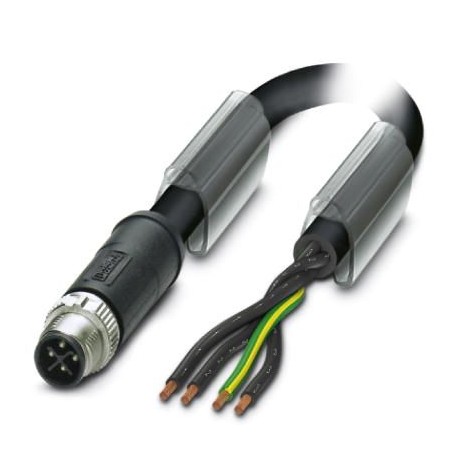

PHOENIX CONTACT SAC-4P-MSS/3,0-PUR PE SCO SAC-4P-MSS/3,0-PUR PE SCO 1036564 PHOENIX CONTACT Power cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-4P-MSS/3,0-PUR PE SCO 1036564 PHOENIX CONTACT Power cable

SAC-4P-MSS/3,0-PUR PE SCO

1036564

PHOENIX CONTACT

50 Pcs.

Power cable

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey 1036564
Packing unit 1
GTIN4055626569321
Custom tariff number85444290

Dimensions

Length of cable3 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C12 A
Rated voltage690 V AC
Number of positions4
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingS power
Standards/regulationsM12 connector IEC 61076-2-111
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialPA
Material of grip bodyPA
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-111
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9YV1-11Y
UL AWM style20234 / 10492 (80°C/1000 V)
Conductor cross section4x 1.5 mm²
AWG power supply16
Conductor structure, voltage supply78x 0.15 mm
Core diameter including insulation2.45 mm ±0.05 mm
Thickness, insulation≥ 0.36 mm
Wire colorsBlack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
Length of twist, overall twist93 mm
External sheath, colorblack-gray RAL 7021
Outer sheath thicknessapprox. 1.3 mm
External cable diameter D8.8 mm ±0.25 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles2000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight114 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Conductor resistance≤ 13 Ω/km (at 20 °C)
Nominal voltage, cable≤ 1000 V AC
Test voltage, cable≥ 10000 V AC (Spark test)
Flame resistanceAccording to UL 758/1581 (Cable Flame)
according to UL 758/1581 FT1
According to DIN EN 60332-1-2
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to UL 758, 168 h at 60°C
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Low adhesion
abrasion-resistant
Resistant to salt water
Ambient temperature (operation)-50 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
