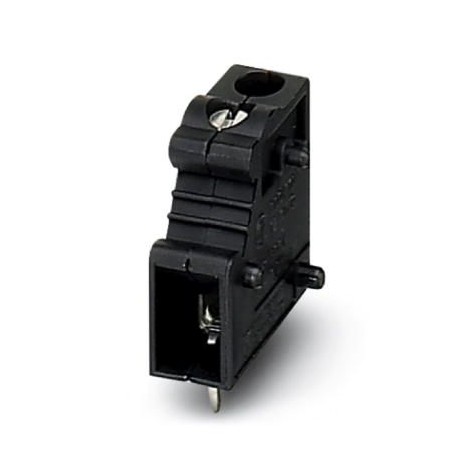

PHOENIX CONTACT GKDS-EX- 6 O.GRZ GKDS-EX- 6 O.GRZ 1717547 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GKDS-EX- 6 O.GRZ 1717547 PHOENIX CONTACT PCB terminal block

GKDS-EX- 6 O.GRZ

1717547

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, rated current: 20 A, dimensioning voltage (III/2): 630 V, nominal section: 2.5 mm², Number of potentials: 6, Number of rows: 1, Number of poles per row: 6, article family: GKDS-EX, pitch: 7.5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Driver/PCB connection direction: 0°, Color: black, Pin arrangement: Double linear pin arrangement, Pin length [P]: 5mm, Packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1717547
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356139212
Weight per Piece (excluding packing)23.650 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]19 mm
Pitch7.5 mm
Dimension a37.5 mm
Width [ w ]45 mm
Height20 mm
Height [ h ]19.5 mm
Solder pin [P]5 mm
Hole diameter1.4 mm

General

Range of articlesGKDS-EX
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)275 V
Rated voltage (III/2)630 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN20 A
Nominal cross section2.5 mm²
Solder pin surface
Internal cylindrical gageA3
Stripping length9 mm
Number of positions6
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.12
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
