View larger
Images are for illustrative purposes only. Please refer to data sheet for details

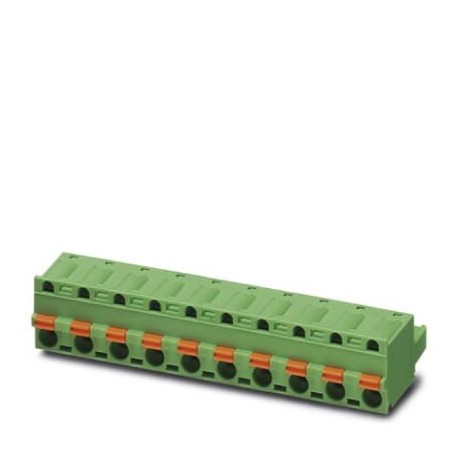

GFKC 2,5/ 2-ST-7,5 BD: X13 1-2 1714474 PHOENIX CONTACT Printed-circuit board connector
GFKC 2,5/ 2-ST-7,5 BD: X13 1-2
1714474
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: GFKC 2.5/.. -ST, pitch: 7.5 mm, connection type: Push-in spring connection, conductor connection direction/printed circuit board: 0°, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | GFKC 2,5/..-ST |
|---|---|
| Number of positions | 2 |
| Connection method | Push-in spring connection |
| Insulating material group | I |
| Rated voltage (III/2) | 630 V |
| Nominal current IN | 12 A |
| Nominal cross section | 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
