View larger
Images are for illustrative purposes only. Please refer to data sheet for details

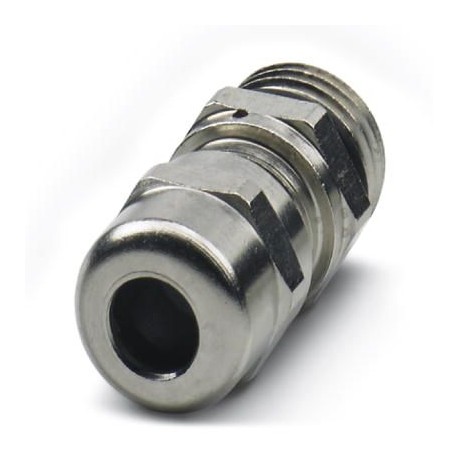

G-INVEN-M20-M67N-NNES-S 1424540 PHOENIX CONTACT Cable gland
G-INVEN-M20-M67N-NNES-S
1424540
PHOENIX CONTACT
1 Pcs.
Cable gland
Cable gland, screwed connection material: Brass, nickel-plated, cable outer diameter 6 mm ... 11 mm, shielding: no, connection thread: M20 x 1.5, colour: silver, with pressure compensation element and O-ring
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424540 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 702 (C-2-2017) |
| GTIN | 4055626374451 |
| Weight per Piece (excluding packing) | 41.500 g |
| Custom tariff number | 74199990 |
| Country of origin | TR (Turkey) |
Dimensions
| Length | 35 mm |
|---|---|
| Wrench size, union nut | 22 mm |
| Wrench size, support | 22 mm |
| Length of the connecting thread | 8 mm |
| Feed-through hole diameter | 25.1 mm ... 25.2 mm |
| External cable diameter | 6 mm ... 11 mm |
| 6 mm ... 12 mm (for UL 514 B) |
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| IP66 | |
| Ambient temperature (operation) | -20 °C ... 100 °C (static) |
General
| Type | with pressure compensation element and flat gasket |
|---|---|
| No. of conductors | 1 |
| Cable gland material | Nickel-plated brass |
| Cable seal material | CR |
| Sealing material | NBR (O-ring) |
| Shielded | no |
| Thread type connection side | M20 x 1.5 |
| Thread type on connection side | M20 |
| Torque | 7.5 Nm (Union nut) |
| 7.5 Nm (Support sleeve) | |
| 5.5 Nm (for UL514 B: union nut / support) | |
| Color | silver |
| Impact category | 5 |
| Execution of the strain relief | A |
| Air flow rate | 40 (l/h at a pressure differential of 70 mbar) |
| Manufacturer | BIMED |
| Manufacturer Designation | BMBCVG-02 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 8 mm |
| Wrench width (EF000177) | 22 mm |
| Suitable for cable diameter (EF005466) | 6 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| With strain relief (EF000878) | Yes |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -20 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
