View larger
Images are for illustrative purposes only. Please refer to data sheet for details

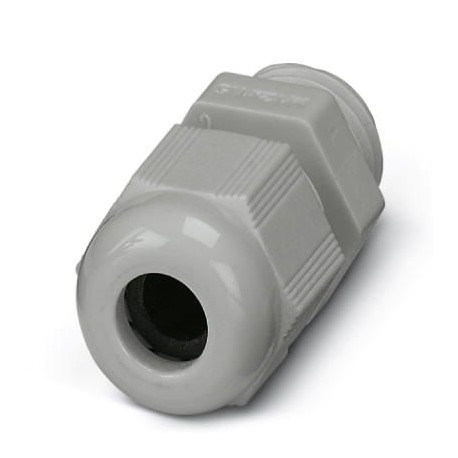

G-INS-PG7-M68N-PNES-LG 1424485 PHOENIX CONTACT Cable gland
G-INS-PG7-M68N-PNES-LG
1424485
PHOENIX CONTACT
10 Pcs.
Cable gland
Cable gland, screw connection material: PA, outer diameter of the cable 3 mm ... 6.5 mm, shielding: no, connection thread: Pg7, color: luminous gray RAL 7035
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1424485 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 695 (C-2-2017) |
| GTIN | 4055626373157 |
| Weight per Piece (excluding packing) | 3.600 g |
| Custom tariff number | 39269097 |
| Country of origin | TR (Turkey) |
Dimensions
| Length | 32 mm |
|---|---|
| Wrench size, union nut | 15 mm |
| Wrench size, support | 15 mm |
| Hexagon angular dimension | 17.1 mm |
| Length of the connecting thread | 8 mm |
| Feed-through hole diameter | 12.6 mm ... 12.7 mm |
| External cable diameter | 3 mm ... 6.5 mm |
| 4 mm ... 6 mm (for UL 514 B) |
Ambient conditions
| Degree of protection | IP68 (5 bar / 0.5 h) |
|---|---|
| Ambient temperature (operation) | -20 °C ... 100 °C (static) |
General
| No. of conductors | 1 |
|---|---|
| Cable gland material | PA |
| Cable seal material | Neoprene |
| Flammability rating according to UL 94 | V2 |
| V2 (Housing) | |
| Shielded | no |
| Thread type connection side | Pg7 |
| Thread type on connection side | Pg7 |
| Torque | 1.5 Nm (Union nut: EN 62444) |
| 1.5 Nm (Support: EN 62444) | |
| 2 Nm (for UL514 B: union nut) | |
| Color | lightgrey RAL 7035 |
| Assembly instructions | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Manufacturer | BIMED |
| Manufacturer Designation | BS-11 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 8 mm |
| Wrench width (EF000177) | 15 mm |
| Hexagon angular dimension (EF005268) | 17.1 mm |
| Suitable for cable diameter (EF005466) | 3 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Grey |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
