View larger
Images are for illustrative purposes only. Please refer to data sheet for details

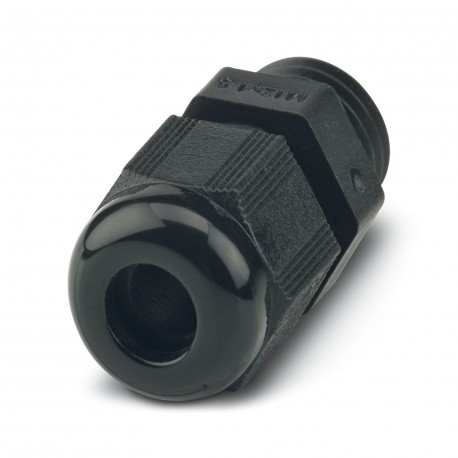

G-INS-PG16-M68N-PNES-BK 1424499 PHOENIX CONTACT Cable gland
G-INS-PG16-M68N-PNES-BK
1424499
PHOENIX CONTACT
5 Pcs.
Cable gland
Cable gland, screwed connection material: PA, outer diameter of the cable 10 mm ... 14 mm, shielding: no, connection thread: Pg16, colour: deep black RAL 9005
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 10 mm ... 14 mm, shielding: no, connecting thread: Pg16, color: jet black RAL 9005
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Mounting
| Assembly note | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
Product properties
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Manufacturer | BIMED |
| Manufacturer Designation | BS-25 |
| Shielded | no |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Length | 44 mm |
| Length of the connecting thread | 10 mm |
| Hole diameter | 22.6 mm ... 22.8 mm |
| Wrench size, union nut | 27 mm |
| Wrench size, support | 27 mm |
| Hexagon angular dimension | 30.8 mm |
| Thread type connection side | Pg16 |
Connection data
| Tightening torque | 5.5 Nm ±0.5 Nm (Cap nut) |
| 3.5 Nm (Support sleeve) |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V2 |
| Seal material Cable seal | CR |
| Material for screw connection | PA |
Cable/line
| External cable diameter Cable 1 | 10 mm ... 14 mm |
| External cable diameter | 10 mm ... 14 mm (for UL 514 B) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (5 bar / 0.5 h) | |
| Enclosure rating (NEMA) | 1 |
| 4 | |
| 4X | |
| 12 | |
| 13 | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 10 mm |
| Wrench width (EF000177) | 27 mm |
| Hexagon angular dimension (EF005268) | 30.8 mm |
| Suitable for cable diameter (EF005466) | 10 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Black |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
