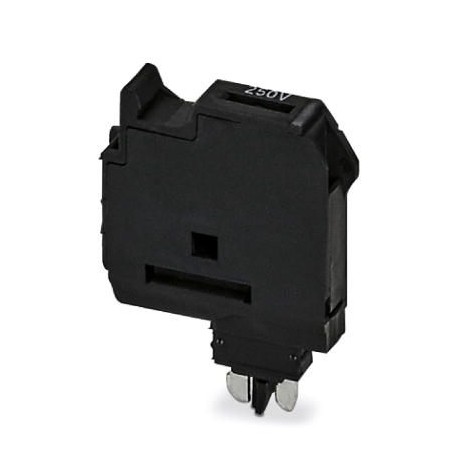

P-FU 5X20 LA 250 3036835 PHOENIX CONTACT Fuse plug

P-FU 5X20 LA 250

3036835

PHOENIX CONTACT

10 Pcs.

Fuse plug Fuse head, Before replacing the fuse G, remove the fuse head from the base terminal., nominal voltage: 500 V, nominal current: 6.3 A, fuse type: G/5 x 20, mounting type: Socket mounting, color: black

Automation > Component plug terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3036835
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 408 (C-1-2017)
GTIN4017918943929
Weight per Piece (excluding packing)4.000 g
Custom tariff number85369095
Country of originPL (Poland)

General

NotePrior to replacing the cartridge fuse, disconnect the fuse connector from the basic terminal block.
Number of levels1
Colorblack
Insulating materialPA
Flammability rating according to UL 94V0
Maximum power dissipation for nominal condition1.6 W

Dimensions

Width6.2 mm
Length28 mm

General

FuseG / 5 x 20
Fuse typeGlass / ceramics / ...
Degree of pollution3
Maximum power dissipation1.6 W (Short-circuit and overload protection)
LED voltage range110 V AC/DC ... 250 V AC/DC
LED current range0.41 mA ... 0.96 mA
Maximum load current6.3 A (the current is determined by the fuse used)
Nominal current IN6.3 A (the current is determined by the fuse used)
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Standards and Regulations

Connection in acc. with standardCSA
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3036835 Terminal blocks (EC002018)
Feature Name Feature Value
Mounting method (EF000003) Pluggable
Width/grid dimension (EF002522) 6.2 mm
Colour (EF000007) Black

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
