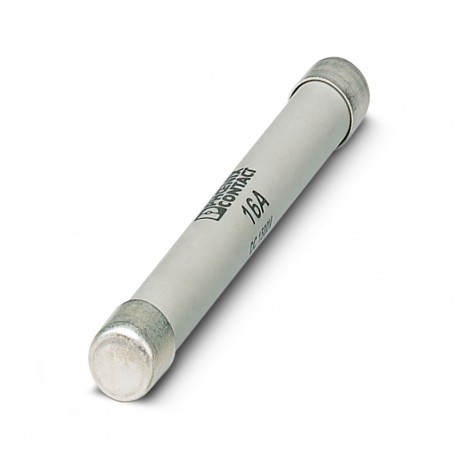

PHOENIX CONTACT FUSE 10,3X85 16A PV FUSE 10,3X85 16A PV 3062772 PHOENIX CONTACT Fuse View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FUSE 10,3X85 16A PV 3062772 PHOENIX CONTACT Fuse

FUSE 10,3X85 16A PV

3062772

PHOENIX CONTACT

10 Pcs.

Fuse Fuse, 10.3 mm x 85 mm, up to 1500 V DC, gPV feature Fuse, 10.3 mm x 85 mm, up to 1500 V DC, gPV characteristic

Automation > Cylindrical fuse
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFuse
Electrical properties
Fuse16 A Midget/10.3 x 85 (without fault display)
Fuse
Power dissipation3.6 W
Melting integral I2t34.2 A2s
Disconnect integral I2t352.1 A2s
Connection data
Connection in acc. with standardIEC 60269-6
Nominal current16 A
Nominal voltage1500 V DC
Dimensions
Height85 mm
Diameter10.3 mm
Material specifications
Colorwhite (RAL 9010)
Standards and regulations
Connection in acc. with standardIEC 60269-6
