View larger
Images are for illustrative purposes only. Please refer to data sheet for details

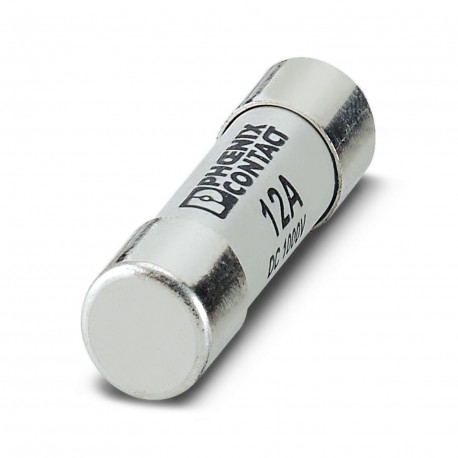

FUSE 10,3X38 12A PV 3061347 PHOENIX CONTACT Fuse
FUSE 10,3X38 12A PV
3061347
PHOENIX CONTACT
10 Pcs.
Fuse
Fuse, 10.3x38 mm, up to 1000 V DC, gPV characteristic
Automation > Cylindrical fuse
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Fuse |
Electrical properties
| Fuse | 12 A Midget / 10.3 x 38 (without fault display) |
| Fuse | |
| Power dissipation | 1.9 W |
| Melting integral I2t | 22 A2s |
Connection data
| Connection in acc. with standard | IEC 60269-6 |
| Nominal current | 12 A |
| Nominal voltage | 1000 V DC |
Dimensions
| Height | 38 mm |
| Diameter | 10.3 mm |
Material specifications
| Color | white (RAL 9010) |
Standards and regulations
| Connection in acc. with standard | IEC 60269-6 |
