View larger
Images are for illustrative purposes only. Please refer to data sheet for details

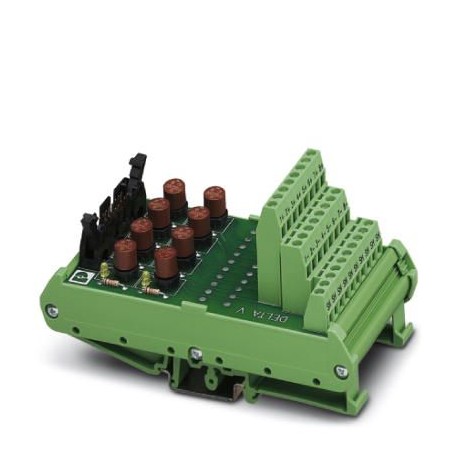

UM-DELTAV/D/SI/BFI/TP 5603257 PHOENIX CONTACT Passive module
UM-DELTAV/D/SI/BFI/TP
5603257
PHOENIX CONTACT
1 Pcs.
Passive module
Fuse module with terminal blocks for connection display and fuse fault indication (for digital cards of the Delta V control)
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 5603257 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 483 (C-5-2017) |
| GTIN | 4017918955014 |
| Weight per Piece (excluding packing) | 208.900 g |
| Custom tariff number | 85369010 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 24 V DC |
|---|---|
| Max. perm. current (per branch) | 50 mA (in as-supplied state, with one 50 mAF fuse, max. 1 A permitted) |
| Number of positions | 16 |
| Mounting position | any |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 16 |
| Pitch | 2.54 mm |
Supported controller
| Controller | Emerson DeltaV |
|---|---|
| - suitable I/O card | VE4001S2T2B3 |
| VE4001S2T2B3 Series 2 | |
| VE4001S2T1B3 | |
| VE4002S1T1B3 | |
| VE4002S1T2B3 | |
| VE4002S1T2B3 Series 2 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standards/regulations | IEC 60664 |
| DIN EN 50178 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127242700eCl@ss 6.027242200eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | Blade terminal |
| Number of poles (EF001391) | 16 |
| Rated voltage (EF000228) | 24 V |
| Rated current (EF000227) | 0.05 A |
| Depth (EF000049) | 71 mm |
| Width (EF000008) | 61 mm |
| Height (EF000040) | 126 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
