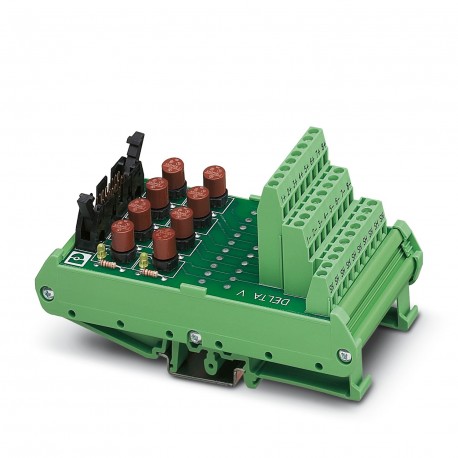

PHOENIX CONTACT UM-DELTAV/A/SI/BFI/TP UM-DELTAV/A/SI/BFI/TP 5603258 PHOENIX CONTACT Passive module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UM-DELTAV/A/SI/BFI/TP 5603258 PHOENIX CONTACT Passive module

UM-DELTAV/A/SI/BFI/TP

5603258

PHOENIX CONTACT

1 Pcs.

Passive module Fuse module with separable test sockets, fuse fault indication and terminal blocks for connection display (for analogue cards of the Delta V controller) Fuse module with separable test sockets, fuse failure display and shield connection terminals (for analog cards of the Delta V control system)

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeInterface module
Product familyVARIOFACE
Number of positions16
No. of channels8
Data management status
Article revision07
Electrical properties
Nominal voltage UN24 V DC
Max. current carrying capacity per branch50 mA (in as-supplied state, with one 50 mAF fuse, max. 1 A permitted)
Supported controller EMERSON DeltaV
Suitable I/O cardVE4003S2B4
VE4005S2B3
VE4003S2B5
SE4003S2B4
Connection data
Field level
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Controller level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions16
Pitch2.54 mm
Signaling
Status display presentYes, if the fuse fails
Dimensions
Item dimensions
Width61 mm
Height126 mm
Depth71 mm
Material specifications
Housing insulation materialPolyamide PA non-reinforced
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Standards and regulations
Standards/regulationsIEC 60664
DIN EN 50178
Mounting
Mounting typeDIN rail mounting
Mounting positionany
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 5603258 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 16
Rated voltage (EF000228) 24 V
Rated current (EF000227) 0.05 A
Depth (EF000049) 71 mm
Width (EF000008) 61 mm
Height (EF000040) 126 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
