View larger
Images are for illustrative purposes only. Please refer to data sheet for details

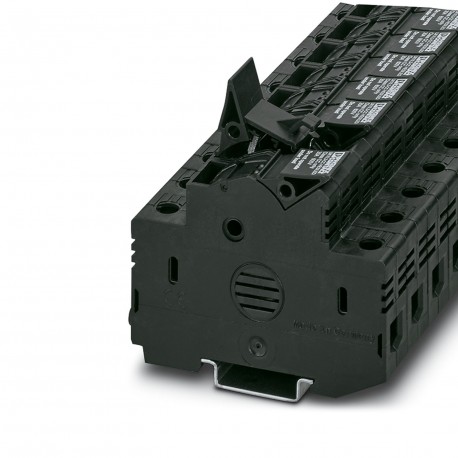

UK 10,3-CC HESILED N 600 3048616 PHOENIX CONTACT Fuse modular terminal block
UK 10,3-CC HESILED N 600
3048616
PHOENIX CONTACT
12 Pcs.
Fuse modular terminal block
Fuse terminal block, fuse type: Glass/ceramic/..., fuse type: DC class, rated voltage: 600 V, rated current: 30 A, connection type: Screw connection, Sizing cross-section: 25 mm², cross-section: 1.5 mm²- 25 mm², mounting class: NS 35/7.5, NS 35/15, color: black
Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: Class CC, nom. voltage: 600 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 25 mm2, cross section: 1.5 mm2- 25 mm2, mounting type: NS 35/7,5, NS 35/15, color: black
Automation > Fuse terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Trade restriction | |
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product properties
| Product type | Fuse terminal block |
| Number of connections | 2 |
| Number of rows | 1 |
| Data management status | |
| Article revision | 03 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Fuse type | Glass / ceramics / ... |
| Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 4 W |
| Fuse | Class CC |
| LED voltage range | 110 V AC/DC ... 600 V AC/DC |
Input data
| LED voltage range | 110 V AC/DC ... 600 V AC/DC |
Connection data
| Number of connections per level | 2 |
| Nominal cross section | 25 mm² |
| Screw thread | M5 |
| Tightening torque | 2 ... 2.5 Nm |
| Stripping length | 11 mm |
| Internal cylindrical gage | B6 |
| Conductor cross section rigid | 1.5 mm² ... 25 mm² |
| Cross section AWG | 14 ... 4 (converted acc. to IEC) |
| Conductor cross section flexible | 1.5 mm² ... 25 mm² |
| Conductor cross section, flexible [AWG] | 14 ... 4 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 16 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 16 mm² |
| Cross-section with insertion bridge, rigid | 10 mm² |
| Cross-section with insertion bridge, flexible | 10 mm² |
| 2 conductors with same cross section, solid | 1.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible | 1.5 mm² ... 4 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 1.5 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 1.5 mm² ... 10 mm² |
| Nominal current | 30 A (The voltage is determined by the fuse or selected LED display) |
| Maximum load current | 30 A (the current and voltage are determined by the fuse) |
| Nominal voltage | 600 V (The voltage is determined by the fuse or selected LED display) |
| Nominal cross section | 25 mm² |
Dimensions
| Width | 18 mm |
| Height | 81 mm |
| Depth on NS 35/7,5 | 65.5 mm |
| Depth on NS 35/15 | 73 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | IIIb |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 85 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | NS 35/7,5 |
| NS 35/15 |
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 1.5 mm² |
| Connectable conductor cross section solid-core (EF007337) | 1.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Rated current In (EF008250) | 30 A |
| Rated voltage (EF000228) | 600 V |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Type of electrical connection 2 (EF002527) | Screw connection |
| Number of levels (EF002659) | 1 |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Width (EF000008) | 17.55 mm |
| Height (EF000040) | 79.256634 mm |
| Depth (EF000049) | 67.880266 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Black |
