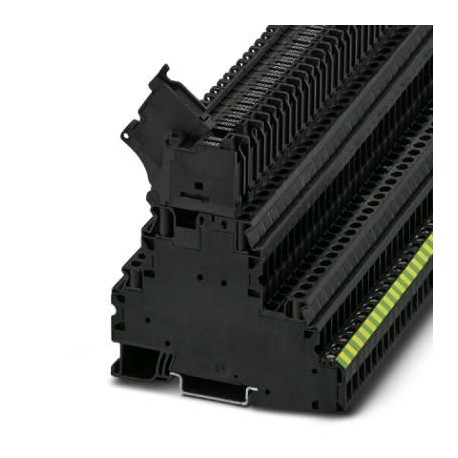

PHOENIX CONTACT UT 4-PE/L/HESILA 250 (5X20) UT 4-PE/L/HESILA 250 (5X20) 3214323 PHOENIX CONTACT Fuse modular terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UT 4-PE/L/HESILA 250 (5X20) 3214323 PHOENIX CONTACT Fuse modular terminal block

UT 4-PE/L/HESILA 250 (5X20)

3214323

PHOENIX CONTACT

50 Pcs.

Fuse modular terminal block Fuse rail terminal, fuse type: Glass/ceramic/..., fuse type: G/5 x 20, nominal voltage: 500 V, nominal current: 28 A, connection type: Screw connection, Sizing cross-section: 4 mm², cross-section: 0.14 mm²- 6 mm², connection type: Screw connection, Sizing cross-section: 1 mm², cross-section: 0.14 mm²- 6 mm², Mounting class: NS 35/7.5, NS 35/15, color: black

Automation > Fuse terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3214323
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 232 (C-1-2017)
GTIN4046356895156
Weight per Piece (excluding packing)37.290 g
Custom tariff number85369095
Country of originPL (Poland)

General

NoteThe current is determined by the fuse used, the voltage by the selected LED.
If the fuse is faulty, the downstream circuit will not be disconnected.
Number of levels3
Number of connections5
Nominal cross section4 mm²
Colorblack
Insulating materialPA
Flammability rating according to UL 94V0
Maximum power dissipation for nominal condition1.6 W (the value is multiplied when connecting multiple levels)
FuseG / 5 x 20
Fuse typeGlass / ceramics / ...
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipationmax. 1.6 W (With single arrangement of the fuse terminal block in the event of overload)
max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload)
max. 4 W (With single arrangement of the fuse terminal block in the event of a short-circuit)
max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)
LED voltage range110 V AC ... 250 V AC
LED current range0.41 mA ... 0.96 mA
Connection in acc. with standardIEC 60947-7-2/IEC 60947-7-3
Maximum load current36 A (the current is determined by the fuse used)
Nominal current IN28 A
Nominal voltage UN500 V
Connection in acc. with standardIEC 60947-7-2/IEC 60947-7-3
Maximum load current (upper level)6.3 A (the current is determined by the fuse used)
Nominal current IN(upper level)6.3 A
Nominal voltage UN250 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width6.2 mm
Length92.7 mm
Height NS 35/7,588.9 mm
Height NS 35/1596.4 mm

Connection data

NotePlease observe the current carrying capacity of the DIN rails.
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
Connection methodScrew connection
Stripping length9 mm
Internal cylindrical gageA4
Screw threadM3
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm

Standards and Regulations

Connection in acc. with standardIEC 60947-7-2/IEC 60947-7-3
IEC 60947-7-2/IEC 60947-7-3
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3214323 Terminal blocks (EC000899)
Feature Name Feature Value
Type of fuse insert (EF002530) Other
Type of fuse holder (EF002531) Other
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Rated current In (EF008250) 28 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of levels (EF002659) 3
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 6.15 mm
Height (EF000040) 92.69325 mm
Depth (EF000049) 94.53 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
