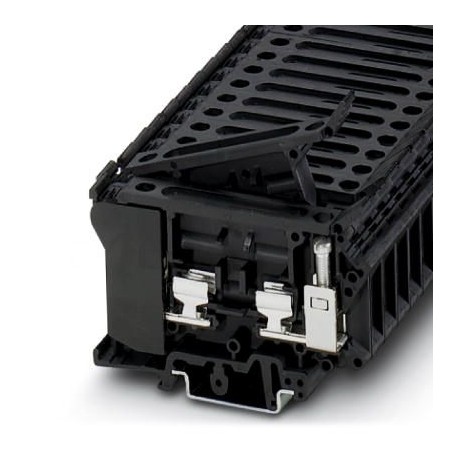

UK 6,3-HESI 3004171 PHOENIX CONTACT Fuse modular terminal block

UK 6,3-HESI

3004171

PHOENIX CONTACT

50 Pcs.

Fuse modular terminal block Fuse terminal block, fuse type: Glass/ceramic/..., fuse type: G/6.3 x 32, nominal voltage: 500 V, nominal current: 10 A, number of poles: 1, connection type: Screw connection, Sizing cross-section: 1.5 mm², cross-section: 0.5 mm²- 16 mm², mounting class: NS 35/7.5, NS 35/15, NS 32, colour: black

Automation > Fuse terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3004171
Packing unit50 pc
Catalog pagePage 455 (C-1-2017)
GTIN4017918090685
Weight per Piece (excluding packing)31.820 g
Custom tariff number85369095
Country of originTR (Turkey)

General

NoteFor terminal marking, please use marking material with 10.2 mm pitch.
For lever marking, please use marking material with 8.2 mm pitch.
Number of levels1
Number of connections2
Nominal cross section16 mm²
Colorblack
Insulating materialPA
Flammability rating according to UL 94V0
Maximum power dissipation for nominal condition2.43 W
FuseG / 6,3 x 32
Fuse typeGlass / ceramics / ...
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-3
Maximum load current10 A
Nominal current IN10 A
Nominal voltage UN500 V (As a fuse terminal block)
Rated operating voltage500 V
Open side panelNo
Number of positions1
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width10.2 mm
Length79 mm
Height NS 35/7,560.5 mm
Height NS 35/1568 mm
Height NS 3265.5 mm

Connection data

Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.10 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.10 mm²
Cross section with insertion bridge, solid max.10 mm²
Cross section with insertion bridge, stranded max.10 mm²
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.4 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²
Cross section with insertion bridge, solid max.10 mm²
Cross section with insertion bridge, stranded max.10 mm²
Connection methodScrew connection
Stripping length12 mm
Internal cylindrical gageB6
Screw threadM4
Tightening torque, min1.2 Nm
Tightening torque max1.5 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-3
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3004171 Terminal blocks (EC000899)
Feature Name Feature Value
Type of fuse insert (EF002530) G-fuse 6.3x32 mm
Type of fuse holder (EF002531) Other
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Rated current In (EF008250) 10 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of levels (EF002659) 1
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 10.05 mm
Height (EF000040) 78.393238 mm
Depth (EF000049) 58.7 mm
Closing plate required (EF002525) No
Colour (EF000007) Black
