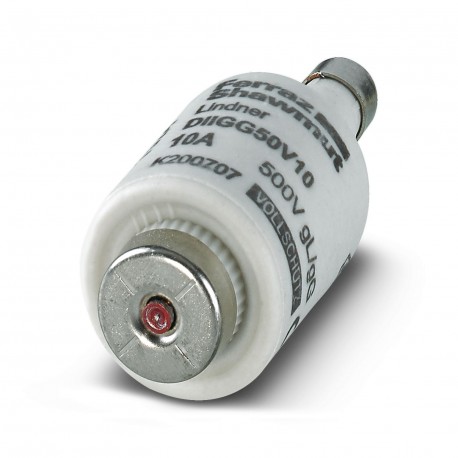

PHOENIX CONTACT S-II-10 A/500 V S-II-10 A/500 V 0913634 PHOENIX CONTACT Fuse insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S-II-10 A/500 V 0913634 PHOENIX CONTACT Fuse insert

S-II-10 A/500 V

0913634

PHOENIX CONTACT

5 Pcs.

Fuse insert Fuse cartridge, rated current: 10 A, length: 50 mm, diameter: 22 mm, color: red Fuse insert, nom. voltage: 500 V, nominal current: 10 A, diameter: 22 mm, color: red

Automation > Cylindrical fuse
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFuse
Electrical properties
Nominal current IN10 A
Fuse10 A gL/gG DIAZED (without fault display)
Connection data
Nominal current10 A
Nominal voltage500 V AC/DC
Dimensions
Diameter22 mm
Material specifications
Colorred
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 85 °C
Ambient temperature (storage/transport)-25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %
