> PHOENIX CONTACT > Modular TBs > 0913045
PHOENIX CONTACT S 10 A/380 V S 10 A/380 V 0913045 PHOENIX CONTACT Fuse insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

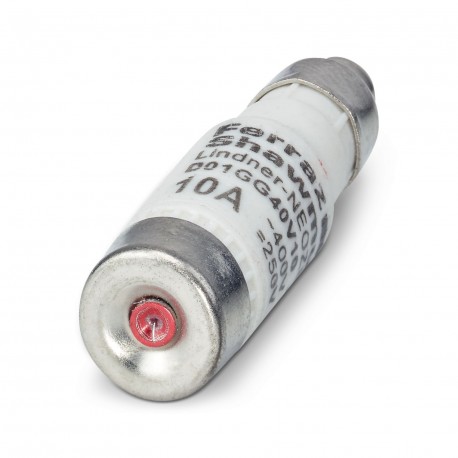

S 10 A/380 V 0913045 PHOENIX CONTACT Fuse insert

S 10 A/380 V

0913045

PHOENIX CONTACT

10 Pcs.

Fuse insert Fuse cartridge, rated current: 10 A, length: 36 mm, diameter: 11 mm, color: red Fuse insert, nom. voltage: 400 V, nominal current: 10 A, diameter: 11 mm, color: red

Automation > Cylindrical fuse
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFuse
Electrical properties
Nominal current IN10 A
Fuse10 A gL/gK NEOZED (without fault display)
Connection data
Nominal current10 A
Nominal voltage400 V AC (250 V DC)
Dimensions
Diameter11 mm
Material specifications
Colorred
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 85 °C
Ambient temperature (storage/transport)-25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
