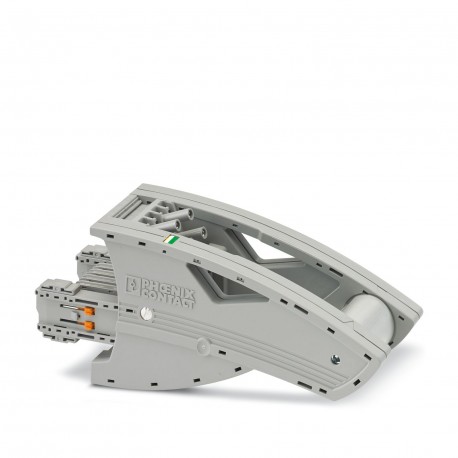

FTPR-3/4S 3069954 PHOENIX CONTACT Test plug

FTPR-3/4S

3069954

PHOENIX CONTACT

1 Pcs.

Test plug Test connector, with swivel handle, rated voltage: 400 V, rated current: 20 A, number of poles: 4, Sizing cross-section: 2.5 mm², color: gray Test plug, With twist grip, nom. voltage: 400 V, nominal current: 20 A, number of positions: 4, Rated cross section: 2.5 mm2, color: gray

Automation > Test plug terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeTest plug terminal block
Number of positions4
Pitch8.2 mm
Potentials4
Electrical properties
Maximum power dissipation for nominal condition1.31 W
Connection data
Nominal cross section6 mm²
Test socket torque0.5
NoteThe conductor cross section depends on the cable lug used
Conductor cross section flexible0.5 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]20 ... 14 (converted acc. to IEC)
Nominal current20 A
Maximum load current20 A
Nominal voltage400 V AC/DC
Nominal cross section2.5 mm²
Dimensions
Dimensional drawingsyppvphynd.jpg
Width63.4 mm
Height86 mm
Pitch8.2 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Environmental and real-life conditions
Ambient conditions
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %

ETIM for 3069954 Terminal blocks (EC002555)
Feature Name Feature Value
Rated voltage (EF000228) 400 V
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable (EF006169) No
Number of poles (EF001391) 4
Modular spacing (EF000394) 8.2 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
