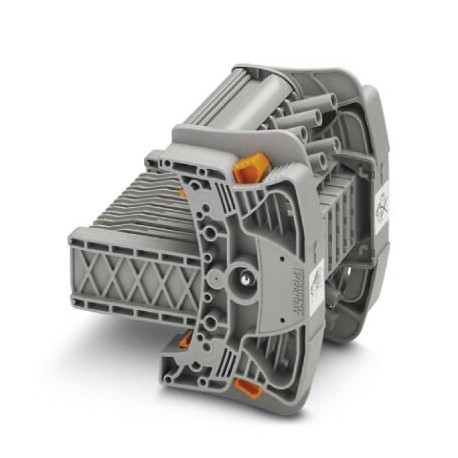

FTPC 6+1 3069262 PHOENIX CONTACT Test plug

FTPC 6+1

3069262

PHOENIX CONTACT

1 Pcs.

Test plug Test plug, rated voltage: 400 V, rated current: 24 A, number of poles: 7, connection type: Connection by terminal, cross-section: 0.5 mm² - 2.5 mm², color: gray

Automation > Test plug for terminal blocks
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3069262
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 593 (C-1-2017)
GTIN4055626379975
Weight per Piece (excluding packing)329.200 g
Custom tariff number85366990
Country of originPL (Poland)

General

Number of positions7
Potentials7
Nominal cross section6 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Maximum load current24 A
Maximum power dissipation for nominal condition1.31 W
Maximum load current24 A
Nominal current IN24 A
Nominal voltage UN400 V
Insertion/withdrawal cycles mechanical500
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Note regarding shock protectionWhen plugged in
Result of surge voltage testTest passed
Surge voltage test setpoint4.8 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of bending testTest passed
Bending test rotation speed10 rpm
Bending test turns135
Bending test conductor cross section/weight0.2 mm² / 0.2 kg
6 mm2/ 1.4 kg
10 mm² / 2 kg
Tensile test resultTest passed
Conductor cross section tensile test0.2 mm²
Tractive force setpoint10 N
Conductor cross section tensile test6 mm²
Tractive force setpoint80 N
Conductor cross section tensile test10 mm²
Tractive force setpoint90 N
Result of tight fit on supportTest passed
Tight fit on carrierPanel cutout
Setpoint5 N
Result of voltage-drop testTest passed
Requirements, voltage drop≤ 3.2 mV
Result of temperature-rise testTest passed
Short circuit stability resultTest passed
Conductor cross section short circuit testing4 mm²
Short-time current300 A
Conductor cross section short circuit testing4 mm²
Short-time current500 A
Conductor cross section short circuit testing4 mm²
Short-time current1250 A
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 1, class B, body mounted
Test frequencyf1= 5 Hz to f2= 150 Hz
ASD level1.857 (m/s2)2/Hz
Acceleration0,8 g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration5 g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Pitch8.2 mm

Connection data

NoteThe conductor cross section depends on the cable lug used
Connection methodScrew connection
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible14

Mounting

Min. tightening torque of the test socket screw:0.5 Nm
Max. tightening torque of the test socket screw:0.6 Nm

Standards and Regulations

Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Classifications


ETIM for 3069262 Terminal blocks (EC002555)
Feature Name Feature Value
Rated voltage (EF000228) 400 V
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Type of electric connection (EF003961) Other
Connectable (EF006169) No
Number of poles (EF001391) 7
Modular spacing (EF000394) 8.2 mm
