View larger
Images are for illustrative purposes only. Please refer to data sheet for details

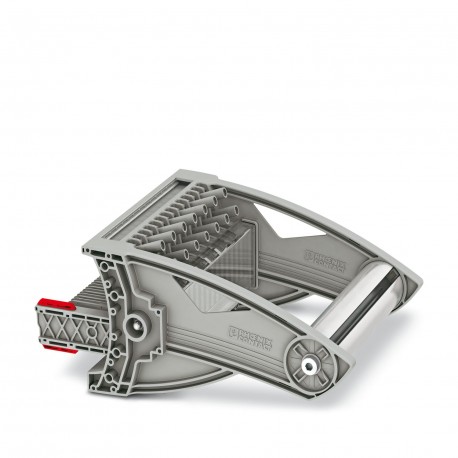

FTP-3/20S 3069988 PHOENIX CONTACT Test plug
FTP-3/20S
3069988
PHOENIX CONTACT
1 Pcs.
Test plug
Test connector, number of poles: 20, colour: grey
Test plug, number of positions: 20, color: gray
Automation > Test plug for terminal blocks
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Test plug terminal block |
| Number of positions | 20 |
| Pitch | 8.2 mm |
| Potentials | 20 |
Connection data
| Test socket torque | 0.5 |
Dimensions
| Dimensional drawing |  |
| Width | 188.7 mm |
| Height | 86 mm |
| Pitch | 8.2 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Feature Name | Feature Value |
|---|---|
| Connectable (EF006169) | No |
| Number of poles (EF001391) | 20 |
| Modular spacing (EF000394) | 8.2 mm |
