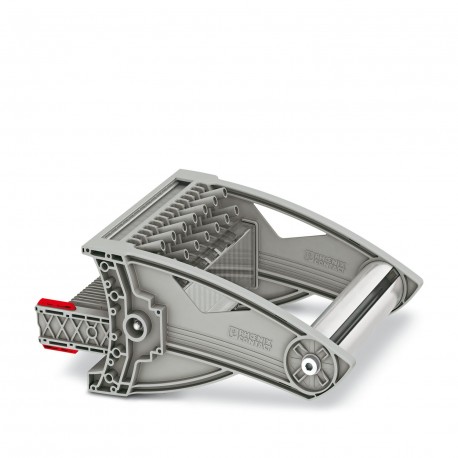

FTP-3/14S 3069953 PHOENIX CONTACT Test plug

FTP-3/14S

3069953

PHOENIX CONTACT

1 Pcs.

Test plug Test connector, rated voltage: 400 V, rated current: 20 A, number of poles: 14, Sizing cross-section: 2.5 mm², color: gray

Automation > Test plug for terminal blocks
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3069953
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 615 (C-1-2017)
GTIN4055626279275
Weight per Piece (excluding packing)705.800 g
Custom tariff number85366990
Country of originPL (Poland)

General

Number of positions14
Potentials14
Nominal cross section6 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Maximum power dissipation for nominal condition1.31 W
Maximum load current20 A
Nominal current IN20 A
Nominal voltage UN400 V AC/DC
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width146.7 mm
Length86 mm
Pitch8.2 mm

Connection data

NoteThe conductor cross section depends on the cable lug used
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible14

Mounting

Min. tightening torque of the test socket screw:0.5 Nm
Max. tightening torque of the test socket screw:0.6 Nm

Standards and Regulations

Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

REACh SVHCLead 7439-92-1

Classifications


ETIM for 3069953 Terminal blocks (EC002555)
Feature Name Feature Value
Rated voltage (EF000228) 400 V
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable (EF006169) No
Number of poles (EF001391) 14
Modular spacing (EF000394) 8.2 mm
