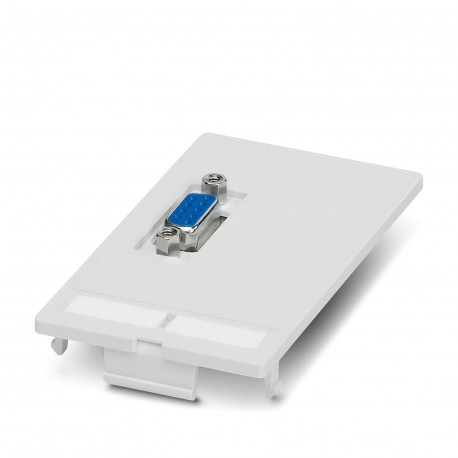

PHOENIX CONTACT SI-FP-D1A SI-FP-D1A 1404501 PHOENIX CONTACT Front plate View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SI-FP-D1A 1404501 PHOENIX CONTACT Front plate

SI-FP-D1A

1404501

PHOENIX CONTACT

1 Pcs.

Front plate Faceplate with contact inserts, plastic, 1x D-SUB 9 (female/female) Front plate with contact inserts, plastic, 1x D-SUB 9 (socket/socket)

Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData front plate
Number of positions9
Number of slots1
Data management status
Article revision00
Electrical properties
Rated voltage (III/3)48 V AC/DC (D-SUB 9)
max. 42.4 V DC (D-SUB 9, UL rating)
max. 30 V AC (D-SUB 9, UL rating)
Rated current3 A (D-SUB 9)
max. 175 mA (D-SUB 9, UL rating)
Dimensions
Dimensional drawingwtygcopmie.jpg
Width50.7 mm
Height87.5 mm
Depth15 mm
Material specifications
Material Front platePBT (Front plate)
Connector
Contact insert designwith 1x D-SUB 9 Socket/socket, slot locking UNC 4...40 bolts
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-10 °C ... 60 °C
Mounting
Assembly notesuitable for all mounting frames

ETIM for 1404501 Cabinets and enclosures (EC000456)
Feature Name Feature Value
Width (EF000008) 50.7 mm
Height (EF000040) 87.5 mm
Material (EF002169) Plastic
Surface finishing (EF006569) Other
