> PHOENIX CONTACT > Industrial plug-in connectors/interfaces > 1657724

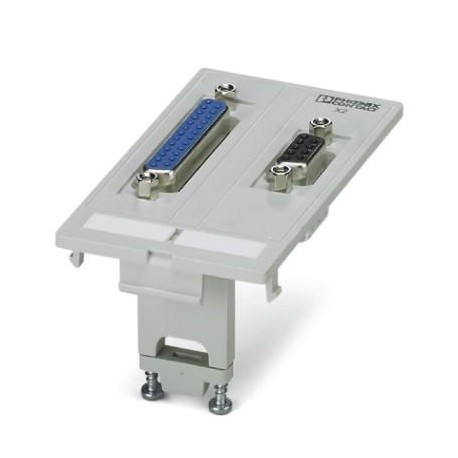

PHOENIX CONTACT VS-SI-FP-DSUB9-DSUB25-GC-BU/ST VS-SI-FP-DSUB9-DSUB25-GC-BU/ST 1657724 PHOENIX CONTACT Front plate View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-SI-FP-DSUB9-DSUB25-GC-BU/ST 1657724 PHOENIX CONTACT Front plate

VS-SI-FP-DSUB9-DSUB25-GC-BU/ST

1657724

PHOENIX CONTACT

1 Pcs.

Front plate

Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1657724
Packing unit1 pc
Catalog pagePage 720 (C-2-2017)
GTIN4046356118361
Weight per Piece (excluding packing)48.200 g
Custom tariff number85366990
Country of originCZ (Czech Republic)

Mechanical characteristics

Number of slots2
Colorgray
Degree of protectionIP20
Contact insert designwith 1x D-SUB 9 Socket/pin, slot locking UNC 4...40 bolts
with 1x D-SUB 25 Socket/pin, slot locking UNC 4...40 bolts

Ambient conditions

Ambient temperature (operation)-10 °C ... 60 °C

Material data

Flammability rating according to UL 94V0
MaterialPBT (Front plate)
Height45 mm

Electrical characteristics

Rated voltage (III/3)max. 30 V AC (D-SUB, UL-Rating)
Rated current3 A

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
