PHOENIX CONTACT SI-FP-R1A-D1E SI-FP-R1A-D1E 1404500 PHOENIX CONTACT Front plate View larger
Images are for illustrative purposes only. Please refer to data sheet for details

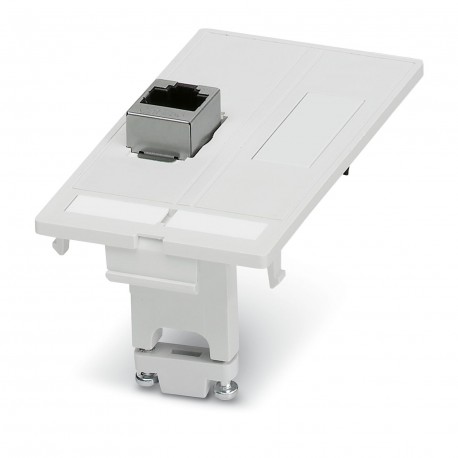

SI-FP-R1A-D1E 1404500 PHOENIX CONTACT Front plate

SI-FP-R1A-D1E

1404500

PHOENIX CONTACT

1 Pcs.

Front plate Data faceplate with contact inserts, plastic, 1xRJ45, 8 metal poles, CAT5e (female/female); 1 x D-SUB 9 Blind Cover Front plate with contact inserts, plastic, 1 x RJ45, 8-pos. metal, CAT5e (socket/socket), 1 x D-SUB 9 blind cover

Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData front plate
Number of positions8
Number of slots2
Data management status
Article revision00
Electrical properties
Rated voltage (III/3)max. 42.4 V DC (RJ45, UL rating)
max. 30 V AC (RJ45, UL rating)
Rated currentmax. 175 mA (RJ45, UL rating)
Dimensions
Dimensional drawingvdzpjfkuje.jpg
Width50.7 mm
Height87.5 mm
Depth40 mm
Material specifications
Material Front platePBT (Front plate)
Connector
Contact insert designwith 1x RJ45 Socket/socket, snap-in slot locking
with 1x D-SUB 9
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-10 °C ... 60 °C
Mounting
Assembly notesuitable for all mounting frames

ETIM for 1404500 Cabinets and enclosures (EC000456)
Feature Name Feature Value
Width (EF000008) 50.7 mm
Height (EF000040) 87.5 mm
Material (EF002169) Plastic
Surface finishing (EF006569) Other
