View larger
Images are for illustrative purposes only. Please refer to data sheet for details

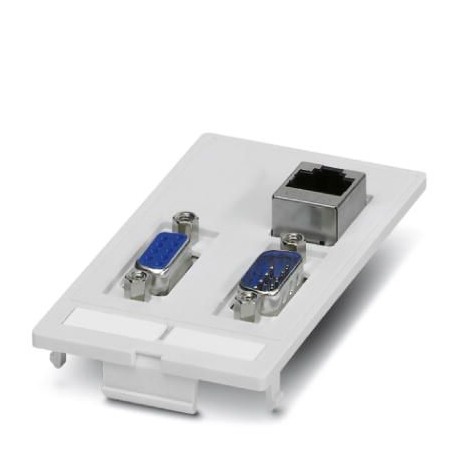

SI-FP-R1A-D1A-D1C 1404507 PHOENIX CONTACT Front plate
SI-FP-R1A-D1A-D1C
1404507
PHOENIX CONTACT
1 Pcs.
Front plate
Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1404507 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 716 (C-2-2017) |
| GTIN | 4046356698498 |
| Weight per Piece (excluding packing) | 47.500 g |
| Custom tariff number | 85366990 |
| Country of origin | CZ (Czech Republic) |
Mechanical characteristics
| Degree of protection | IP20 |
|---|---|
| Contact insert design | with 1x RJ45 Socket/socket, snap-in slot locking |
| with 1x D-SUB 9 Pin/pin, slot locking UNC 4...40 bolts | |
| with 1x D-SUB 9 Socket/socket, slot locking UNC 4...40 bolts |
Electrical characteristics
| Rated voltage (III/3) | max. 30 V AC (RJ45, D-SUB 9, UL rating) |
|---|---|
| Rated current | max. 175 mA (RJ45, D-SUB 9, UL rating) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
